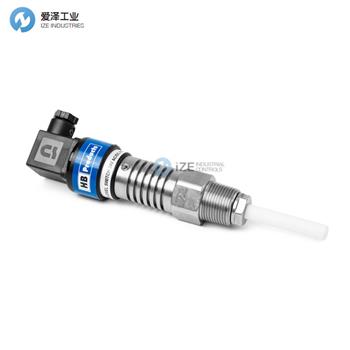

HB PRODUCTS高液位傳感器HBSR系列產品規格
Power supply | |
Voltage | 24 V AC/DC + 10% |
Current consumption | < 200 mA |
Max. current output | Max 50 mA |
Plug connection | ISO4400/DIN 43650 - 4 pins |
Output | |
Transistor output | PNP or NPN |
Contact function | NC or NO |
Environmental conditions | |
Ambient temperature | -30...+50°C |
Refrigerant temperature | -40..+50°C/+50..+80°C (Std./Heat Pump Version) |
Max pressure | 100 bar |
Protection degree | IP54 * |
Vibrations | IEC 60068-2-6 (4g) |
Mechanical specifications | |
Thread connection | 3/4” |
Material - liquid parts | AISI 304 / PTFE |
Material- electronic parts | Nylon 6 (PA) |
Dimensions | 210x52x40 |
Weight | 470 g |
House design | Front |
HB PRODUCTS高液位傳感器其他常用型號：
HB PRODUCTS HBSR-PNP/NO-1
HB PRODUCTS HBSR-PNP/NC-1
HB PRODUCTS HBSR-PNP/NO-2
HB PRODUCTS HBSR-PNP/NC-2
HB PRODUCTS HBSR-PNP/NO-4
HB PRODUCTS HBSR-PNP/NC-4
HB PRODUCTS HBSR-PNP/NO-5
HB PRODUCTS HBSR-PNP/NC-5
HB PRODUCTS HBSR/WITT-PNP/NC-5
HB PRODUCTS HBSR-PNP/NO-6
HB PRODUCTS HBSR-PNP/NC-6
HB PRODUCTS HBSR-NPN/NO-1
HB PRODUCTS HBSR-NPN/NC-1
HB PRODUCTS HBSR-NPN/NO-2
HB PRODUCTS HBSR-NPN/NC-2
HB PRODUCTS HBSR-NPN/NO-4
HB PRODUCTS HBSR-NPN/NC-4
HB PRODUCTS HBSR-NPN/NO-5
HB PRODUCTS HBSR-NPN/NC-5
HB PRODUCTS HBSR-NPN/NO-6
HB PRODUCTS HBSR-NPN/NC-6
HB PRODUCTS SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HB PRODUCTS高液位傳感器HBSR-PNP/NC-2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HB PRODUCTS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
HB PRODUCTS高液位傳感器HBSR系列HBSR-PNP/NC-2介紹
