PCB加速計352C23技術參數
English: | SI: | |
Performance | ||
Sensitivity (±20 %) | 5 mV/g | 0.5 mV/(m/s2) |
Measurement Range | ±1000 g pk | ±9810 m/s2 pk |
Frequency Range (±5 %) | 2.0 to 10000 Hz | 2.0 to 10000 Hz |
Frequency Range (±10 %) | 1.5 to 15000 Hz | 1.5 to 15000 Hz |
Frequency Range (±3 dB) | 0.7 to 25000 Hz | 0.7 to 25000 Hz |
Resonant Frequency | ≥70 kHz | ≥70 kHz |
Broadband Resolution (1) | 0.003 g rms | 0.03 m/s2 rms |
Non-Linearity | ≤1 % | ≤1 % |
Transverse Sensitivity | ≤5 % | ≤5 % |
Environmental | ||
Overload Limit (Shock) | ±10000 g pk | ±98000 m/s2 pk |
Temperature Range (Operating) | -65 to +250 °F | -54 to +121 °C |
Temperature Response | See Graph %/°F | See Graph %/°F |
Electrical | ||
Excitation Voltage | 18 to 30 VDC | 18 to 30 VDC |
Constant Current Excitation | 2 to 20 mA | 2 to 20 mA |
Output Impedance | ≤200 Ohm | ≤200 Ohm |
Output Bias Voltage | 7 to 12 VDC | 7 to 12 VDC |
Discharge Time Constant | 0.24 to 1.0 sec | 0.24 to 1.0 sec |
Settling Time (within 10% of bias) | <3 sec | <3 sec |
Spectral Noise (1 Hz) | 1500 μg/√Hz | 14715 (μm/sec2)/√Hz |
Spectral Noise (10 Hz) | 400 μg/√Hz | 3924 (μm/sec2)/√Hz |
Spectral Noise (100 Hz) | 120 μg/√Hz | 1177 (μm/sec2)/√Hz |
Spectral Noise (1 kHz) | 30 μg/√Hz | 294 (μm/sec2)/√Hz |
Spectral Noise (10 kHz) | 20 μg/√Hz | 196 (μm/sec2)/√Hz |
Electrical Isolation (Base) | >100000000 Ohm | >100000000 Ohm |
Physical | ||
Size - Height | .11 in | 2.8 mm |
Size - Length | 0.34 in | 8.6 mm |
Size - Width | 0.16 in | 4.1 mm |
Weight | 0.007 oz | 0.2 gm |
Sensing Element | Ceramic | Ceramic |
Sensing Geometry | Shear | Shear |
Housing Material | Anodized Aluminum | Anodized Aluminum |
Sealing | Epoxy | Epoxy |
Electrical Connector | 3-56 Coaxial Jack | 3-56 Coaxial Jack |
Electrical Connection Position | Side | Side |
Mounting | Adhesive | Adhesive |

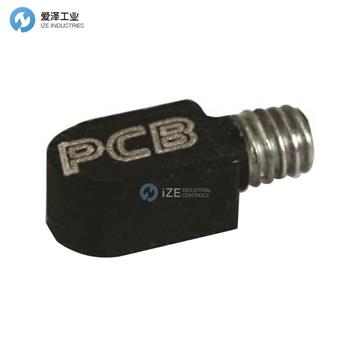

PCB加速計352C23介紹
微型、輕量（0.2 克）、陶瓷剪切 ICP? 加速計、5 mV/g、2 至 10k Hz、10 英尺可拆卸電纜
靈敏度：（±20%）5 mV/g（0.5 mV/（m/s2））
測量范圍：±1000 g pk（±9810 m/s2 pk）
寬帶分辨率：0.003 g rms（0.03 m/s2 rms）
頻率范圍：（±5%）2.0至10000 Hz
傳感元件：陶瓷
重量：0.007 盎司（0.2 克）
Platinum Stock Products; Miniature, lightweight (0.2 gm), ceramic shear ICP? accel., 5 mV/g, 2 to 10k Hz, 10-ft detachable cable
Sensitivity: (±20%)5 mV/g (0.5 mV/(m/s2))
Measurement Range: ±1000 g pk (±9810 m/s2 pk)
Broadband Resolution: 0.003 g rms (0.03 m/s2 rms)
Frequency Range: (±5%)2.0 to 10000 Hz
Sensing Element: Ceramic
Weight: 0.007 oz (0.2 gm)
