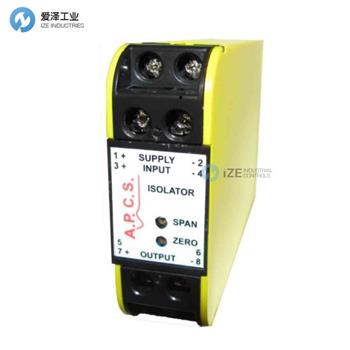

APCS隔離信號轉換器SI236系列技術參數
General Specifications | |
Size: | 23.5W x 71.5H x 109D (mm). |
Mounting: | Clip for 35mm DIN-Rail. |
Housing material: | ABS. |
Termination: | Top mounted screw terminals. |
Protection class: | IP40 (IP55 Enclosure Opt). |
Weight: | 0.120 kg. |
Protection class: | IP40. |
Calibration accuracy: | <0.2%. |
Front ‘SPAN’ adjust: | ±25% typical. |
Front ‘ZERO’ adjust: | +20/ -10% typical. |
Linearity: | <0.1%. |
Long term drift: | <0.1%. |
Temperature effect: | Typically 0.025% of span per °C |
Operating temperature: | -10...+60°C. |
Output drive: | 10mA into 0 - 2kΩ,20mA into 0 - 1kΩ. |
Input impedance: | Current 51Ω. |
Supply/Input/Output Isolation: | 2kV rms. |
Auxiliary Output: | 20Vdc with 22mA drive (Suitable for 2-wire transmitter supply) |
Electromagnetic compatibility: | Complies with AS/NZS 4251.1 (EN 50081.1) |
APCS隔離信號轉換器SI236系列介紹
The SI236 是一種隔離轉換器，提供高達 2kV rms 的三向電隔離。SI236 能從輸入信號中產生隔離的單極輸出信號。SI236 有三種通過編碼插頭可選擇的型號，能夠接受：工藝、毫伏或雙極輸入信號。在現場更改范圍時，不需要特殊工具或組件。在輸入部分提供一個 20Vdc/22mA 的傳感器電源，這對于環路供電的現場變送器非常有用。最終校準通過前面可調的零點和跨度 15 圈微調調整來完成。最大電流驅動為 20mA，最大電壓驅動為 20V。寬范圍 DC 電源（8-60V）覆蓋所有流行的 DC 電源。所有單元都配有 500mS 濾波器，可以通過鏈路更改為 5mS 以實現快速響應。所有 APCS 模塊的電源和輸入都具備浪涌保護功能。
The SI236 is an isolating converter providing true 3-way galvanic isolation up to 2kV rms. The SI236 produces an isolated unipolar output signal from an input signal. The SI236 comes in three, coding plug select-able models to accept either: Process, mV or Bipolar input signals. No special tools or components are required for range changing in the field. A 20Vdc/22mA sensor supply is available at the input section, this can be useful for loop powered field transmitters. Final calibration is trimmed using the front accessible zero and span 15-turn trim adjustments. Maximum current drive is 20mA and maximum voltage drive is 20V. The wide swing DC-power supply (8-60V) covers all popular DC sources. All units are fitted with a 500mS filter that can be link changed to 5mS for fast response. Surge protection for power supply and input is standard with all APCS modules.
APCS隔離信號轉換器SI236系列其他常用型號：
APCS SI236-311010
APCS SI236-319010
