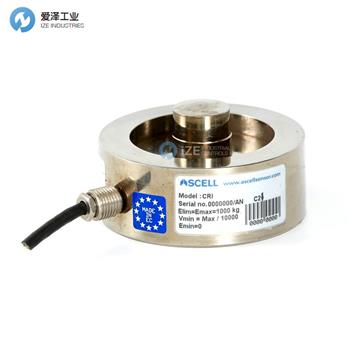

ASCELL稱重傳感器CRI C3系列規格
GENERAL TECHNICAL CHARACTERISTICS FOR g= 9,8031 m/ s2 | |
OIML Class | C2 & C3 UNITS |
Divisions nLC | 2000 & 3000 |
Minimum Dead load Emin | 0 kg |
Z= Emax / 2DR | 2000 & 3000 |
Y= Emax / Vmin | 10000 |
Vmin | Emax / 10000 |
Rated Capacity Emax | 150 - 300 - 500 - 1000 - 2000 3000 - 5000 - 7000 - 10000 - 20000 30000 - 50000 kg |
Rated Sensitivity C | 2 ± 0,1 % mV/V |
Rated Input Voltage | 10 V dc |
Input Voltage Range | 5...15 V ac/dc |
Input Resistance RLC | 1100 ± 10% Ω |
Output Resistance | 1000 ± 10% Ω |
Zero Balance | ± 2 % Emax |
Insulation Resistance at 50 V DC | > 5000 MΩ |
Service Overload | > 150 % Emax |
Elim. | > 300 % Emax |
Temperature Range | |
Compensated | - 10 ... 40 ℃ |
Operating | - 30 ... 85 ℃ |
Storage | - 30 ... 90 ℃ |
Max. Non-linearity | 0,025 % Emax |
Max. Hysteresis | 0,015 % Emax |
Max. No repeatability | 0,01 % Emax |
M Max. Creep in 4 hours | 0,03 % Emax |
Max. Zero Recovery Test in ? hour | 0,007 % Emax |
Max Temperature effect | |
On Sensitivity | 0,0013 % Emax / oC |
On Zero | 0,001 % Emax / oC |
Weight | 600 - 1300 g |
Cable Length | 5 (0,1 to 10t) / 15 (20 to 50t) m |
Environmental Protection | IP68 - DIN 40050 (100h 1m) |
ASCELL傳感器其他常用型號：
ASCELL CRI C3 T.C8829
ASCELL CRI C3 5t
ASCELL CRI C3 5000kg
ASCELL sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于ASCELL稱重傳感器CRI C3 T.C8829的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ASCELL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
ASCELL稱重傳感器CRI C3系列CRI C3 T.C8829介紹
