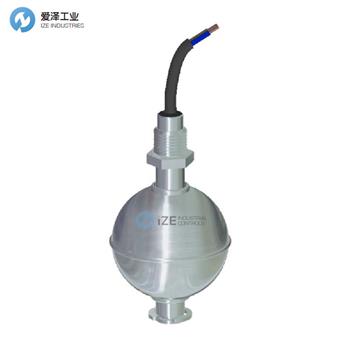

DISIBEINT液位開關IMN 70 INOX描述
General | |
Operating principle | IMN level magnetic sensors are based on about reed switches inside the tube, which are activated by a magnet hosted inside the float action and moves to the thrust of the liquid. |
Application | · For the detection of a single point level in liquids. |
Housing | |
Electrical connection | By hose cable of two conductors. |
Length | 1 m. Other lengths on request. |
Cable material (Temperature) | Silicone (130 oC) PVC (70 oC) |
Body | |
Guide tube | SS AISI316 (1.4401). ?12 mm |
Run float | 16 mm |
Temperature | -40..+125 oC |
Mounting position | Vertical, ±15o |
Protection | IP65. Encapsulated with resin epoxy |
DISIBEINT液位開關IMN 70 INOX產品介紹
特點
這些設備用于控制最大或最小液位。
技術數據
過程連接：短接頭，1/4" G，材質為不銹鋼AISI316 (1.4401)
長度：70毫米
浮球：球形，直徑52毫米
觸點：（常開 NO）120W/VA-3A/250V AC/DC
密度：0.7克/立方厘米
壓力：30公斤/平方厘米
Features
They are used to control a maximum or minimum level.
Technical data
Process connection: Nipple. 1/4" G. SS AISI316 (1.4401)
Length: 70 mm
Float: Spherical ?52 mm
Contacts: (NO) 120W/VA-3A/250VCA/CC
Density: 0,7 g/cm3
Pressure: 30 kg/cm2
DISIBEINT液位開關其他常見型號：
DISIBEINT IMN 40 INOX
DISIBEINT IMN 40 A INOX
DISIBEINT IMN 70 INOX
DISIBEINT IMN 70 A INOX
