SPECTRA激光儀GL1425C技術參數
Specifications | |
Grade Range, No tilt adjustment | typ. ± 9 % |
Grade Range with tilt adjustment | ± 15 % |
Rotation Speed | 300, 600, 900 rpm |
Operational Diameter, with HL760 | 800 m (2600 ft) |
Laser Type | 630 – 643 nm |
Laser Class | Class 2 |
Self Leveling Range | Typ. ± 5° (± 8.7%) |
Radio Range (HL760) | Up to 100m (330 ft) |
Power Source | 10000 mAh NiMH battery back or 4 x 1.5V D alkaline batteries |
Battery Life Time | Typ. 45 hours |
Battery Charging Time | < 10 hours |
Tripod Attachments | 5/8 x 11 horizontally and vertically |
Dust and Water Proof (IP) | IP66 |

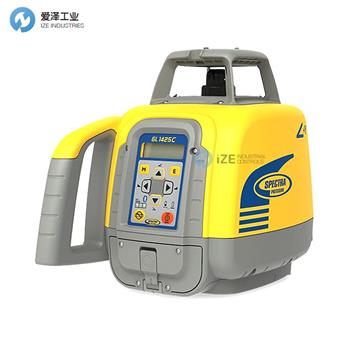

SPECTRA激光儀GL1425C介紹
自動調平 GL1425C 雙坡度激光儀是一款堅固耐用、經濟高效的激光儀，可完成三項工作：調平、坡度和垂直校準。即使在惡劣的現場條件下，GL1425C 也能始終提供可靠精準的性能，能夠更快（轉速高達 900 rpm）更智能地工作。GL1425C 內置藍牙，并配備專用的激光遙控應用程序。
應用：
平整和挖掘
混凝土模板和基腳的找平
一般建筑垂直找正和鉛垂線測量，例如錨栓和模板找正
運動場、網球場和車道
陡坡路堤和溝渠堤岸
坡道和排水系統
The automatic self-leveling GL1425C dual grade laser is the most rugged, cost-effective laser that does three jobs - level, grade, and vertical alignment. Even in harsh job site conditions, the GL1425C delivers consistently reliable and accurate performance, enabling you to work faster (up to 900 rpm) and smarter. The GL1425C comes with Bluetooth built-in and has a dedicated Laser Remote App.
Applications:
Grading and excavating
Leveling concrete forms and footers
General construction vertical alignment and plumb such as anchor bolt and form alignment
Sports fields, tennis courts and driveways
Steep slope road embankments and ditch banks
Ramps and drainage
SPECTRA激光儀其他常用型號：
SPECTRA GL1425C
SPECTRA LL1505C
SPECTRA LL300S
SPECTRA GL412N
SPECTRA GL612N
SPECTRA GL622N
SPECTRA UL633N
SPECTRA DG813
SPECTRA DG613
SPECTRA DG613G
SPECTRA laser NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SPECTRA激光儀GL1425C的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SPECTRA products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
