Z-LASER激光器ZM18系列技術參數
System specifications | |||
Wavelength | 520 nm | 532 nm | 635-685 nm |
Wavelength tolerance | -5+10 nm (typical) | ± 1 nm (typical) | ±10 nm (typical) |
Wavelength drift | 0,06 nm / K (typical) | 0,06 nm / K (typical) | 0,25 nm / K (typical) |
Output power | ≤40 mW | ≤40 mW | ≤120 mW |
Electronic versions | B3 | B | B, S3 |
Pointing Stability | <15 μrad / °C | ||
Long-term power stability | ±3 % over operating temperature range (24h) | ||
Electrical specifications | |||
Operating voltage | 5 - 30 VDC | 5 - 30 VDC | 5 - 30 VDC |
Operating current | <300 mA (max. at 25°C) | <300 mA (max. at 25°C) | <400 mA (max. at 25°C) |
Protection | Over temperature protection and LED pre-failure indicator, reverse polarity and transient protection (ESD, burst & surge) | ||
Electrical isolation | Potential-free housing | ||
Connection | 4-pin M12 plug | ||
Power consumption | <2,7 W | <2,7 W | <2 W |
Optical specifications | |||
Fan angles | 10°, 20°, 30°, 45°, 60°, 75°, 90° (homogeneous lines ) | ||
Line straightness | <0,05 % (of line length ) | ||
Line uniformity | <25 % (typical) | ||
Dot | Point elliptical , point circular | ||
DOE | Multi line, crosses, grids, circle with dot, etc. | ||
Focus range | 100 mm up to 10.000 mm (or customized fixed focus available);ZM18-B-532 >200 mm | ||

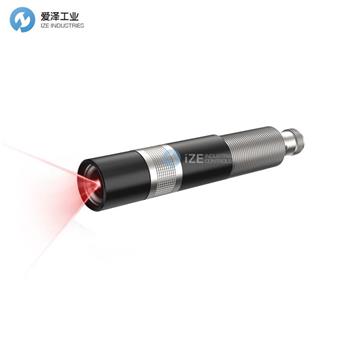

Z-LASER激光器ZM18系列介紹
ZM18 系列產品為現代工業激光模塊樹立了標桿，可以從 1,000 多種不同型號中選擇適合定位應用的激光器。
緊湊的傳感器式設計使其能夠輕松集成到現有機器或系統中。易于操作的聚焦光學元件使產品更加完善。
亮點
? 手動或定焦
? TTL 調制，最高 500 kHz
? 模擬強度控制
? 光輸出功率，最高 120 mW
? 波長范圍：520 - 685 nm
? 工業標準
? IP67
The products of the ZM18 series set the standard for modern laser modules for industrial use. You can select the right laser for your positioning application from more than 1,000 different variants.
The compact, sensor-like design enables easy integration into existing machines or systems. Easy-to-operate focussing optics complete the product. It’s the perfect allrounder!
Highlights
? Manual or fixed focus
? TTL modulation up to 500 kHz
? Analog intensity control
? Optical output power up to 120 mW
? Wavelengths from 520 - 685 nm
? Industrial standard
? IP67
Z-LASER激光器ZM18系列其他常用型號：
Z-LASER ZM18RF182
Z-LASER Z3M18B-F-635-X30
Z-LASER ZM18RF027
Z-LASER Z5M18B-F-635-LG90
Z-LASER laser NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于Z-LASER激光器ZM18RF182的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for Z-LASER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
Z-LASER激光器ZM18系列ZM18RF182技術參數及介紹
