SPECTRA激光儀GL622N技術參數
Specifications | |
Leveling Accuracy | ± 0.5 mm/10 m, 1/16“ @ 100 ft, 10 arc seconds |
Grade Accuracy | ± 1.0 mm/10 m, 1/8“ @ 100 ft, 20 arc seconds |
Grade temperature drift sensitivity | ± 0,3 mm / 10 m / 1°C; 1/16” @ 310 ft. @ 1°F |
Operating Diameter | Approx. 800 m (2600 feet) with detector |
Grade Range (Y, X-GL622N/GL622IR) | ± 25% both axes (not simultaneously) |
Rotation | 300, 600, 750 rpm |
Laser Type | 639 nm (GL622IR: typ.830 nm) |
Laser Class | Class 2 (GL622IR: class 1) |
Self-leveling Range | approx. ± 14° |
Leveling Indicators | LCD indications and LED flashes |
Power Source | NiMH battery pack |
Battery Life | 35 hours NiMH (GL622IR: 40 hours NiMH) |
Operating Temp. | -20°C to 50°C (-4°F to 122°F) |
Storage Temp. | -20°C to 70°C (-4°F to 158°F) |
Tripod Attachments | 5/8 x 11 horizontally and vertically |
Dust and Waterproof | Yes - IP67 |
Weight | 3.1 kg (6.8 lbs) |
Low Voltage Indication | LCD battery indicator |
Low Voltage Disconnection | unit shuts off |
SPECTRA激光儀GL622N介紹
Spectra Precision? GL622N/GL622IR 坡度激光器。易于使用、功能齊全的自動坡度激光器。GL622N 雙坡度激光器堅固耐用，具有自動調平功能，坡度測量范圍為 -25% 至 +25%，可供一般承包商和專業承包商用于各種坡度測量、挖掘和校準應用。

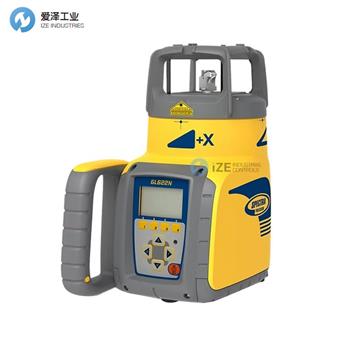

Spectra Precision? GL622N/GL622IR Grade Lasers. Easy-To-Use, Full Featured Automatic Grade Lasers. The GL622N Dual Grade Laser is rugged, automatic self-levelling laser with grade capability from -25% to + 25% and can be used for a wide variety of grade, excavating and alignment applications by general and speciality contractors.
SPECTRA激光儀其他常用型號：
SPECTRA GL622N
SPECTRA GL1425C
SPECTRA LL1505C
SPECTRA LL300S
SPECTRA GL412N
SPECTRA GL612N
SPECTRA UL633N
SPECTRA DG813
SPECTRA DG613
SPECTRA DG613G
SPECTRA laser NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SPECTRA激光儀GL622N的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SPECTRA products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
