CARLEN編碼器AC150S系列產品參數
ELECTRICAL CHARACTERISTICS | |
Power supply | 5 – 30Vdc |
SSI Clock Input | RS-422 Compatible via |
SSI Date Output | Line-driver according to RS422 |
Clock Frequency | 100kHz…2MHz |
Cycle time (single t urn) | < 1 s |
Turn On Time | < 25 μs |
Power consumption | Max 1.5Kw |
Precision | ± 1/2 LSB (up to 12 Bit), ± 2 LSB (at 16 Bit) |
EMC | EN61000-6-4,emitted interference ,EN 61000-6-2,nosie immunity |
MECHANICAL CHARACTERISTICS | |
Housing | Aluminium |
Shaft | Stainless Steel |
Bearings | 6000 series |
Maximum number of revolutions permitted mechanically | 12000 rpm |
Shaft inertia | ≤ 30 g.cm2 |
Starting Torque | ≤ 3 N.cm |
Maximum load permitted on shaft | Axial 40 N,Radial 100 N |
Protection | -40?...+85? C |
Storage Temperature | -40?...+85? C |
Shock resistance | ≤ 100 g (during 6 ms) (IEC 68-2-27) |
Vibration resistance | ≤ 20 g (10… 2 000 Hz) (IEC 68-2-6) |
Weight | 520g |
CARLEN編碼器AC150S系列產品介紹
-堅固耐用，抗沖擊/振動能力強
-高防護等級IP65，IP67選項，帶密封法蘭
-隔離的SSI接口，時鐘從100到500 kHz
-5至30Vdc的通用電子電路
-短路和極性反轉保護
-可用的高分辨率：18位，將計數變?yōu)?8位。
-高溫性能–40°C至85°C
- Robustness and excellent resistance to shocks / vibrations
- High protection level IP65, IP67 option with a sealing flange
- Isolated SSI interface, clock from 100 to 500 kHz
- Universal electronic circuits from 5 to 30Vdc
- Protection against short-circuits and inversion of polarity
- High resolutions available:18Bits ,Turn counting up tp 18Bits.
- High performances in temperature –40°C to 85°C

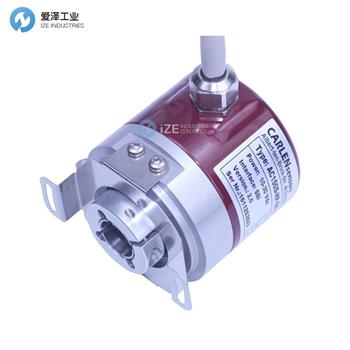

CARLEN編碼器AC150S-4TF-9SG-1213-26-Y1
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件CARLEN 編碼器部分型號：
CARLEN CC1900-25010-P020
CARLEN CC1900-4T5-96-1024-26-1-Y2
CARLEN AC150S-4TF-9SG-1213-26-Y1
CARLEN ENCODER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CARLEN編碼器AC150S-4TF-9SG-1213-26-Y1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CARLEN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
CARLEN編碼器AC150S系列 AC150S-4TF-9SG-1213-26-Y1產品參數
