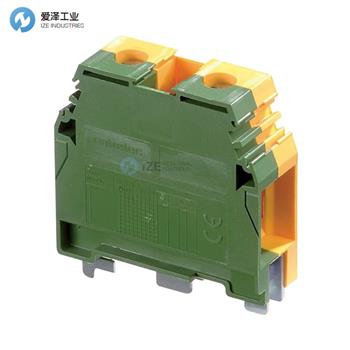

ENTRELEC接線端子M35/16.P規格描述
General Information | |
Extended Product Type | M35/16.P |
Product ID | 1SNA165111R1400 |
EAN | 3472591651119 |
Catalog Description | M35/16.P Screw Clamp Terminal Blocks - Ground - Green-Yellow |
Long Description | - Reliable electrical and mechanical contact with the rail, - Flexibility: snap onto symmetrical and asymmetrical rails. |
Ordering | |
Color | Green-Yellow |
Minimum Order Quantity | 20 piece |
Customs Tariff Number | 85369010 |
Dimensions | |
Product Net Width | 16 mm |
Product Net Height | 49 mm |
Product Net Depth /Length | 46.5 mm |
Product Net Weight | 50.5 g |
Technical | |
Rated Cross-Section | 35 mm2 |
Spacing | 16 mm |
Connection Type | Screw Clamp |
Function | Ground |
Number of Levels | 1 |
Connecting Capacity Main Circuit | Screw Clamp / Flexible 1x 4 ... 35 mm2 Screw Clamp / Rigid 1x 4 ... 50 mm2 Screw Clamp / With Insulated Ferrrule 1x 35 mm2 |
Gauge Type | B9 |
Rated Short-time Withstand Current (Icw) | for 1 s 4200 A |
Dielectric Test Voltage | 3500 V |
Pollution Degree | 3 |
Insulation Material | Polyamide |
Mounting on DIN Rail | G32 (32 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
Wire Stripping Length | 17.0 mm |
Recommended Screw Driver | 8 mm |
Tightening Torque | acc. IEC 60947-1 2.8 N·m Manufacturer 3 N·m |
Technical UL/CSA | |
Connecting Capacity Main Circuit UL/CSA | Screw Clamp / Rigid 1x 8 ... 0 AWG |
Connecting Capacity UL/CSA | Screw Clamp / Rigid 8 ... 0 AWG Stranded 0 AWG |
Flammability According to UL94 | V-0 |
Environmental | |
Ambient Air Temperature | Operation -55 ... +110 °C Storage -55 ... +110 °C |
RoHS Status | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
ENTRELEC接線端子M35/16.P產品介紹
電纜連接器
?螺釘終端M9
?2-8個觸點
?防護等級IP67 1）
?焊接終端
?成型版本
?直徑11.5–14 mm
?可屏蔽
面板安裝連接器
?螺釘終端M9
?2-8個觸點
?防護等級IP67 1）
焊接/浸焊終端
?直徑15 mm
?可屏蔽
?各種變體
Cable Connectors
? Screw termination M9
? 2 – 8 contacts
? Degree of protection IP67 1)
? Solder termination
? Moulded versions
? Diameter 11.5 – 14 mm
? Shieldable
Panel Mount Connectors
? Screw termination M9
? 2 – 8 contacts
? Degree of protection IP67 1)
? Solder/dip solder termination
? Diameter 15 mm
? Shieldable
? Various variants
ENTRELEC接線端子M35/16.P
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件ENTRELEC 接線端子部分型號：
ENTRELEC M4/8.SFL
ENTRELEC MA2.5/5
ENTRELEC MA43561
ENTRELEC MA4/6.3A
ENTRELEC MA4/6.4A
ENTRELEC MA6/8
ENTRELEC MA10/10
ENTRELEC MA16/12
ENTRELEC MA35/16
ENTRELEC MA2.5/5.P
ENTRELEC MA4/6.P
ENTRELEC MA6/8.P
ENTRELEC MA10/10.P
ENTRELEC MA16/12.P
ENTRELEC MA35/16.P
ENTRELEC MA2.5/5.D2
ENTRELEC MA4/6.D2
ENTRELEC MA6/8.D2
ENTRELEC MA2.5/5.SNB
ENTRELEC MA4/6.SNB
ENTRELEC MA6/8.SNB
ENTRELEC MA4/6.D2.SNBT
ENTRELEC MA4/6.D2.SB
ENTRELEC MA6/8.STP
ENTRELEC MA6/8.STP3
ENTRELEC MA6/8.ST
ENTRELEC MA6/8.ST7
ENTRELEC MA4/8.SF
ENTRELEC MA4/8.SN
ENTRELEC MA4/8
ENTRELEC MA4/8.D2.SF
ENTRELEC terminal blocks NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ENTRELEC接線端子M35/16.P的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ENTRELEC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
ENTRELEC接線端子M35/16.P產品參數
