WILCOXON低頻加速度計731-207規格介紹
| Specifications | |
| PARAMETER | VALUE |
| Sensor output | Dynamic vibration (IEPE) |
| Sensitivity | 10 V/g |
| Sensitivity tolerance | ±10 % |
| Frequency response, ±3dB | 0.2 Hz - 1,300 Hz |
| Mounting Thread | 10-32 UNF tapped hole |
| Connector style | 10-32 |
| Connector orientation | Top exit |
| Full-scale range | 0.5 g peak |
| Resonance frequency | 2.4 kHz |
| Temperature range | 0°C to +80°C |
| Weight | 50 grams |
| Hazardous area approvals | Non-approved |
WILCOXON低頻加速度計731-207產品介紹
緊湊型地震加速度計,10 V/g
型號731-207
地震加速度計,緊湊型,靈敏度為10 V/g,超低噪聲,頂端出口10-32同軸連接器,外殼接地
地震加速度計特點
超低頻率測量
高靈敏度
低通濾波以消除高頻
低噪聲
附帶配件
SF1安裝螺柱

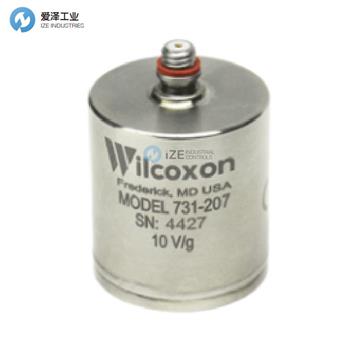

Compact seismic accelerometer, 10 V/g
Model 731-207
Seismic accelerometer, compact, 10 V/g sensitivity, ultra low noise, top exit 10-32 coaxial connector, case grounded
Seismic accelerometer features
Ultra low frequency measurements
High sensitivity
Low-pass filtering to eliminate high frequencies
Low noise
Included accessories
SF1 mounting stud
WILCOXON低頻加速度計其他常見型號:
WILCOXON 731-207
WILCOXON Low frequency accelerometer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WILCOXON低頻加速度計731-207的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for WILCOXON products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
WILCOXON低頻加速度計731-207介紹
