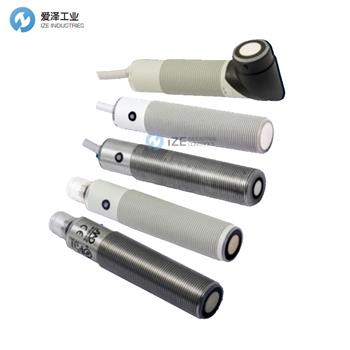

MICRO DETECTORS傳感器UK1CE4-1ESY產品參數
specification | |
maximum sensing distance | 900 mm |
minimum sensing distance | 100 mm |
sensing range (Sd) | 100...900 mm |
beam angle | ± 7° |
switching frequency (digital output) | 4 Hz |
response time (digital output) | ≤125 ms |
hysteresis | 0.01 |
repeatibility | 0.005 |
resolution | 2 mm |
linearity error | 0.01 |
temperature range | - 20°C...+ 60°C |
temperature compensation | |
operating voltage | 15 - 30 Vcc |
temperature drift | 0.05 |
ripple | ≤ 7% |
leakage current | 10 μA @ 30 Vcc |
output voltage drop | 2.2 V max. (IL = 100 mA) |
no-load supply current | ≤ 50 mA |
output current (digital output) | 100 mA |
minimum load resistance (analog voltage output) | 3 k Ω |
set point adjustment | Teach-In button |
power on delay | ≤ 500 ms (digital output) ≤ 900 ms (analogue output) |
power supply protections | polarity reversal, transient |
digital output protections | short circuit (auto reset), overvoltage pulses |
analogical electrical protections | overvoltage pulses |
EMC | conforming to EMC Directive, according to EN 60947-5-2 |
protection degree | IP67 (EN60529) |
housing material | PBT/stainless steel AISI 316L |
active head material | Epoxy-Glass resin |
tightening torque | 1 Nm plastic housing / 50 metallic housing |
weight | plastic version: 70 g connector / 110 g cable metallic version: 100 g connector / 170 gr cable |
storage temperature | - 35°C...+ 70° without freezing |
MICRO DETECTORS傳感器UK1CE4-1ESY產品介紹
特征
?應用筆記
?相片
?目錄/手冊
?帶有數字可編程輸出的型號
?帶有電流或電壓模擬輸出的型號
?可調滯后功能：帶有可編程雙數字輸出的型號，專用于液位
?通過示教按鈕調整工作區域（窗口示教或單點示教），適用于所有型號，以快速投入使用
?多功能LED指示燈：輸出類型，調節步驟，常開/常閉選擇和反向模擬輸出斜率
features
? Application notes
? Photos
? Catalogue / Manuals
? Models with digital programmable output
? Models with current or voltage analogue outputs
? Adjustable Hysteresis function: model with programmable double digital outputs, specific for levels
? Working area adjusting (window teach or single point teach) by Teach-in button suitable for all models for a fast coming into work
? Multifunction LED indicator: output type, adjustment procedure, NO/NC selection and reverse analog output slope
