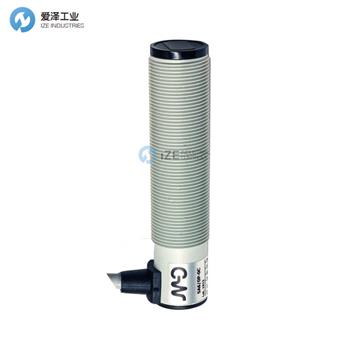

MICRO DETECTOR光電傳感器SSP/0P-0E3X產品參數
Specification | |
Technical features | |
Nominal sensing distance | 150mm |
Thermal drift of Sr | 10% Sr |
Repeat Accuracy | 0.05 |
Sensitivity adjustment | Trimmer |
Application | |
Function Principle | Diffuse reflection |
Notes | With 100x100 mm white matt paper |
Optic position | Axial |
Outputs | |
Output type | NPN |
Output Function | LO/DO selectable |
Switching frequency | 1kHz |
Electrical data | |
Operating Voltage | 10-30Vdc |
No-Load supply current | ≤30mA |
Load current | ≤100mA |
Leakage current | ≤10μA |
Output voltage drop | ≤2V IL=100mA |
Max ripple content | ≤ 10% |
LED indicators | Yellow (output energized), green (supply), red (activated output) |
Time delay before availability | 200ms |
Short-circuit protection | Yes |
Reverse Polarity Protection | Yes |
Emission | Infrared (880nm) |
Interference to external light | 3.000lux (incandescent lamp), 10.000lux (sunlight) |
Mechanical data | |
Dimensions | 21,4mmx89,8mm |
Weight | 75g |
Housing Material | PBT |
Connections | Right angle cable 2m PVC |
Active Head Material | PMMA |
Tightening torque | 1Nm |
Operating temperature | - 25°C…+ 70° C (without freeze) |
Test/Approvals | |
Approvals | CE |
EMC compatibility | EN 60947-5-2 |
Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
Degree of protection | IP67 |
Accessories | |
Supplied Accessories | Metallic nut (2x) |
MICRO DETECTOR光電傳感器SSP系列其他常見型號：
MICRO DETECTOR SSP/0P-0A
MICRO DETECTOR SSP/0P-0E
MICRO DETECTOR SSP/0P-0E3X
MICRO DETECTOR SSP/0P-1A
MICRO DETECTOR SSP/0P-1E
MICRO DETECTOR SSP/0P-1E3X
MICRO DETECTOR SSP/0P-1E3X7W
