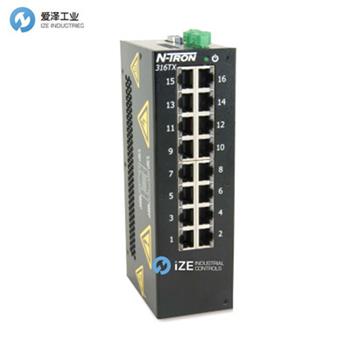

N-TRON交換機316TX產品參數
規格 | |
# of MAC Addresses | 4,000 |
Aging Time | Programmable |
Latency Minimum | 2.2 μs |
Backplane Speed | 2.6 Gb/s |
Switching Method | Store & Forward |
Height | 7.4 in (18.8cm) |
Width | 2.3 in (5.8cm) |
Depth | 3.5 in (8.9cm) |
Weight | 1.9 lbs (0.9 kg) |
DIN-Rail | 35mm |
Redundant Input Voltage | 10-30 VDC |
Input Current | 400mA max. @ 24VDC (max current 1.0 A) |
Inrush Current | 7.0 Amp/0.8 ms @ 24VDC |
Input Ripple | Less than 100 mV |
Operating & Storage Temperature | -40°C to 85°C |
Operating Humidity | 10% to 95% (non condensing) |
Operating Altitude | 0 to 10,000 ft. |
Shock | 200g @ 10ms |
Vibration Seismic | 50g, 5-200Hz, Triaxial |
Note | Unit must be bulkhead mounted to achieve these levels |
MTBF (Mean Time Between Failure) | Two (2) Million Hours |
Network | 10BaseT |
100BaseTX | |
Media | > Cat-3 Cable |
> Cat-5 Cable | |
Connectors | 10/100BaseT |
Sixteen (16) RJ45 Copper Ports | |
Serial Port | Com Parameters |
9600, n, 8, 1 | |
Recommended Minimum Wiring Clearance | |
Top | 1" (2.54 cm) |
Front | 2” (5.08 cm) |
N-TRON交換機300系列
N-TRON交換機316TX產品介紹
基于久經考驗的技術，N-TRON的5W至4KW電機驅動器非常耐用。N-TRON-ELECTRONIC為各種工業應用提供經濟高效的電機驅動技術解決方案，包括包裝，食品，紡織品，標簽和紙張加工，半導體，電子制造和系統電子產品。
Based on tried-and-tested technology, our 5W to 4KW motor drivers are extremely durable. N-TRON-ELECTRONIC offers cost-efficient motor driver technology solutions for a wide range of industrial applications, including packaging, food, textiles, labeling and paper processing, semiconductor, electronics manufacturing and system electronics.
N-TRON交換機300系列
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件N-TRON交換機部分型號：
N-TRON 316TX
N-TRON 308FX2
N-TRON 309FX
N-TRON 317FX
N-TRON Industrial Ethernet Switches NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于N-TRON交換機300系列的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for N-TRON products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
