MICRO DETECTORS感應傳感器PD1/CP-1F產品參數
Specifications | |
Technical features | |
Nominal sensing distance | 5mm |
Operanting distance | 0…4mm |
Standard target | 18x18mm FE360 |
Correction Factor | copper: 0,25 / aluminium: 0,35 / brass: 0,40 / stainless steel: 0,70 |
Thermal drift of Sr | < 10% |
Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) |
Hysteresis | 1 … 20% |
Outputs | |
Output type | NPN |
Output Function | NO |
Switching frequency | 1,5kHz |
Electrical data | |
Operating Voltage | 10 - 30Vdc |
No-Load supply current | ≤ 15mA |
Load current | ≤ 200mA |
Leakage current | ≤ 10μA |
Output voltage drop | ≤ 2V @200mA |
Max ripple content | ≤10% |
LED indicators | Yellow LED output state |
Time delay before availability | 50ms |
Short-circuit protection | Yes (auto-reset) |
Reverse Polarity Protection | Yes |
Protection against inductive loads | Yes |
Mechanical data | |
Dimensions | M18 x 1 / L = 63,1mm |
Mounting | Shielded |
Weight | 55g |
Housing Material | stainless steel AISI316L |
Connections | M12 Plug |
Active Head Material | PPS |
Tightening torque | 50Nm |
Operating temperature | -40°C…+80°C (up to 100°C for short exposure during cleaning process) |
Test/Approvals | |
Approvals | CEcULus |
EMC compatibility | IEC 60947-5-2 |
Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
Degree of protection | IP 67 (EN60529) - IP68 (1m, 7 days) - IP69K |
Accessories | |
Supplied Accessories | 2 nuts M18x1 |
MICRO DETECTORS感應傳感器PD1/CP-1F產品介紹

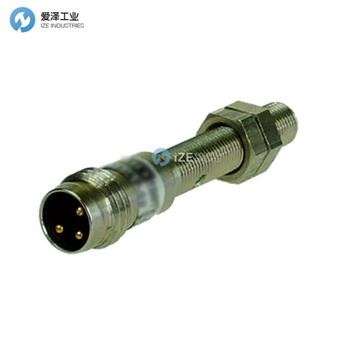

感應傳感器M5感應距離0.8 mm NC / PNP插頭M8
Inductive sensor M5 Sensing distance 0,8 mm NC/PNP plug M8
外觀尺寸
MICRO DETECTORS感應傳感器PD1/CP-1F其他常見型號：
MICRO DETECTORSCORP PD1/AN-3F
MICRO DETECTORSCORP PD1/AP-1F
MICRO DETECTORSCORP PD1/AP-3F
MICRO DETECTORSCORP PD1/CP-1A
MICRO DETECTORSCORP PD1/CP-1F
MICRO DETECTORSCORP PD1/CN-1F
MICRO DETECTORSCORP PD1/AP-3A
MICRO DETECTORSCORP PD1/AN-1A
MICRO DETECTORS Sensors NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MICRO DETECTORS感應傳感器PD1/CP-1F的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MICRO DETECTORS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
