MICRO DETECTORS光電傳感器FAIM/BP-0E產品參數
Specifications | |
Technical features | |
Nominal sensing distance | 5m with RL110 |
Thermal drift of Sr | ≤10% Sr |
Repeat Accuracy | 0.05 |
Sensitivity adjustment | Trimmer |
Application | |
Function Principle | Retroreflective |
Optic position | Axial |
Outputs | |
Output type | PNP |
Output Function | NO+NC |
Switching frequency | 250Hz |
Electrical data | |
Operating Voltage | 10-30Vdc |
No-Load supply current | ≤30mA |
Load current | ≤100mA |
Leakage current | ≤10μA |
Output voltage drop | 2V max. IL =100 mA |
Max ripple content | 0.1 |
LED indicators | Yellow (Lon) or output status Lo/Do |
Time delay before availability | ≤200ms |
Short-circuit protection | Short circuit (autoreset), Overvoltage |
Reverse Polarity Protection | Polarity inversal, Inpulsive voltage |
Emission | Infrared (880 nm) |
Interference to external light | 5000lux (incandescent lamp), 10000lux (sunlight) |
Mechanical data | |
Dimensions | M18 x 1 /L =81,6mm |
Weight | 30g |
Housing Material | PBT |
Connections | M12 4pin Plug |
Active Head Material | PC |
Tightening torque | 1Nm |
Operating temperature | - 25°C…+ 70° C (Without freeze) |
Test/Approvals | |
Approvals | CE, cULus |
EMC compatibility | EN 60947-5-2 |
Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
Degree of protection | IP67 |
Accessories | |
Supplied Accessories | nuts M18 x 1, screwdriver |
MICRO DETECTORS光電傳感器FAIM/BP-0E產品介紹
光電傳感器軸向向后反射4 m，調節PNP NO + NC塑料插頭M12。

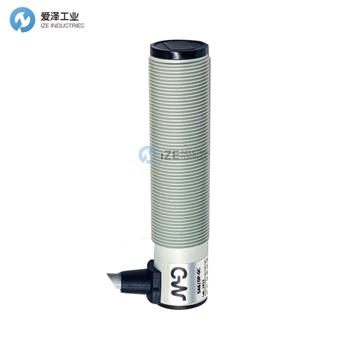

Photoelectric sensor Axial Retroreflective 4 m, adjustment PNP NO+NC plastic plug M12

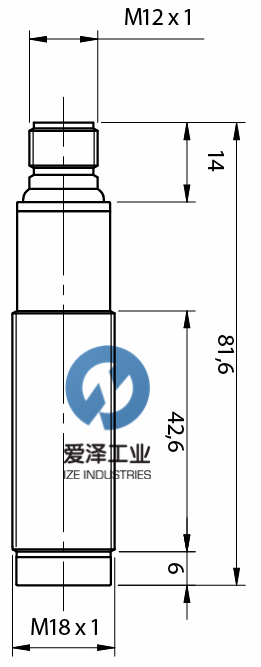

外觀尺寸
