WERMA發聲器110.000.75產品參數
Specifications | |
Mechanical data | |
Height | 64 mm |
Diameter | 72 mm |
Materials | PC |
Housing colour | Black |
Protection category | IP65 |
Connection | Screw terminals |
cross-sectional area maximum | 1,50mm2 / 16AWG |
Type of fixing | Built-in mounting |
Acoustic service life | 5,000 h minimum |
Working temperature minimum | -25°C |
Working temperature maximum | +50°C |
UL Type Rating | Type 4X |
Weight with packaging | 83 g |
Product weight | 83 g |
Electrical data | |
Operating voltage | 24V |
Operating voltage type | AC/DC |
Operating voltage frequency | 50Hz |
Operating voltage tolerance | +/- 10% |
Rated operational voltage | 24 VDC |
Rated operational current | 80 mA |
Rated inrush current | 500 mA |
Protection class | Protection class 2 |
Pollution degree | 3 |
Acustical data | |
Volume/dB(max) at 1m distance | 100,0 dB (A) |
Acoustic signal image | Multi-tone |
Number of tones | 8 tone |
WERMA發聲器110.000.75產品介紹
高輸出安裝多音測深儀，用于22.5毫米控制
面板/開關程序
8種不同音調可選
特定于應用程序的聲音輸出設置

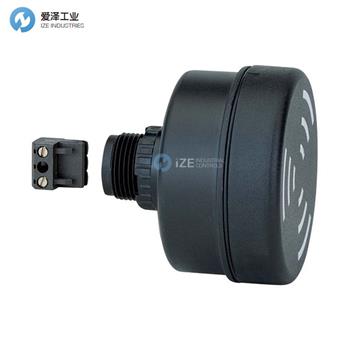

High output installation multi-tone sounder for the 22.5 mm control
panel/switchgear programme
8 different tones selectable
Application-specific sound output setting
WERMA發聲器110.000.75其他常見型號：
WERMA 110.000.67
WERMA 110.000.68
WERMA 110.000.75
WERMA Multi-t.sounder NEW + ORIGINAL+ ONE YEAR WARRANTY
