SENSORIK光電傳感器EFS2000系列產品參數
Specifications | |
Operating voltage | 12 - 30 VDC |
Max. Ripple | 0.1 |
Reverse polarity protection | built-in |
Power consumption at idle | 45 mA |
Current consumption when switched | 47 mA |
Output current | 200 mA |
Short circuit protection | built-in |
Switching frequency (1: 1) | 100 Hz /1 kHz/ 5 kHz |
min. Damping time | 2,5 / 0,25 / 0,05 ms |
min. Undamping time | 7,5 / 0,75 / 0,15 ms |
Voltage display | LED green |
Switching status display | LED yellow |
Function reserve | LED red |
Scanning range setting | Potentiometer |
Cover material | white 400 x 400 mm |
Light type | IR 880 nm |
Hysteresis | 0.1 |
Foreign light sensitivity | insensitive |
Casing | Nickel-plated brass |
Degree of protection | IP 65 |
Weight | 330g |
Ambient temperature range | -10℃...+ 60℃ |
Cable or plug version |

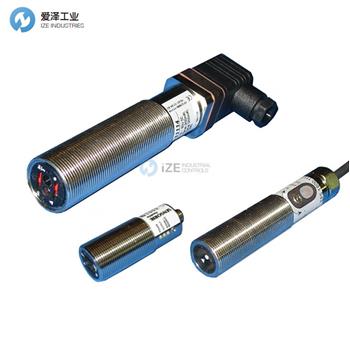

SENSORIK光電傳感器EFS2000-11114+S1468產品介紹
-M30螺紋缸
-最高強度
-開關距離最大5,000 mm
-用于高溫應力
-提供紅外，紅色或綠色照明
- M30 THREAD CYLINDER
- HIGHEST INTENSITY
- SWITCHING DISTANCE up to 5,000 mm
- for HIGH TEMPERATURE STRESS
- Available with INFRARED, RED or GREEN LIGHTS
SENSORIK光電傳感器EFS2000-11114+S1468其他常見型號：
SENSORIK EFS2000-11111
SENSORIK EFS2000-21112
SENSORIK EFS2000-31113
SENSORIK EFS2000-21114
SENSORIK EFS2000-31117
SENSORIK EFS2000-21111
SENSORIK EFS2000-21112
SENSORIK EFS2000-32222
SENSORIK EFS2000-32347
SENSORIK sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SENSORIK光電傳感器EFS2000-11114+S1468的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SENSORIK products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: .
SENSORIK光電傳感器EFS2000-11114+S1468產品參數
