HONEYWELL傳感器 060-6827-04規格描述
PERFORMANCE SPECIFICATIONS | |
Characteristic | Measure |
Number of channels | 1 |
Case materia | Plastic or painted aluminum |
Mounting | Use #6 or #8 screws |
ENVIRONMENTAL SPECIFICATIONS | |
Temperature, operating | -15 °C to 71 °C [5 °F to 160 °F] |
Sealing | IP66 or NEMA 4 |
TRANSDUCER INTERFACE | |
Transducer type | Bridge-based sensor |
Transducer excitation | 3 Vdc, 5 Vdc or 10 Vdc @ 50 mA |
AMPLIFIER CHARACTERISTICS | |
Supply voltage | 18 Vdc to 32 Vdc |
Current draw | 60 mA |
Frequency response (-3 dB) | dc: 7000 Hz with 350 ohm bridge |
Rise time (0 % to 90 %) | 54 ms with 350 ohm bridge |
Zero adjustment range, coarse | ±30 % |
Zero adjustment range, fine | ±15 % |
Span adjustment range | 1 mV/V to 20 mV/V, ±25 % fine |
Linearity | 0.02 % of full scale |
Shunt calibration | Solid state relay on board |
Output | ±10 Vdc |
Output current | 2.5 mA |
Signal-to-noise ratio | 65 db |
dc power supply rejection ratio | > 110 db |
HONEYWELL傳感器 060-6827-04性能特點
DESCRIPTION

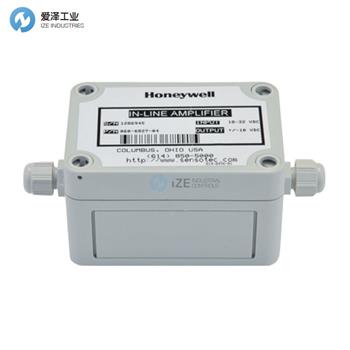

The Model UV-10 amplifier supplies a highly regulated bridge excitation voltage for the transducer and converts the millivolt signal of the transducer to a ±10 Vdc signal. The Universal Inline features two selectable exciation voltages, programmable gain settings, a wide adjustment range on the zero, and a buffered solid-state shunt cal relay for quick calibration.
描述
UV-10型放大器為傳感器提供了高度穩定的電橋激勵電壓，并將傳感器的毫伏信號轉換為±10 Vdc信號。Universal Inline具有兩個可選的激勵電壓，可編程的增益設置，零位寬調節范圍以及一個用于快速校準的緩沖固態并聯校準繼電器。
FEATURES
? Strain gage sensor amplifier
? ±10 Vdc three-wire output
? 3 V, 5 V, or 10 V excitation voltages @ 70 mA
? 18 Vdc to 32 Vdc supply voltage
? NEMA 4 housing
? Increases signal-to-noise ratio in noisy environments
? Effects of voltage drops in excitation sources are eliminated
? Signals may be sent to the data systems from low impedence sources
特征
?應變計傳感器放大器
?±10 Vdc三線輸出
?70 mA時的3 V，5 V或10 V激勵電壓
?18 Vdc至32 Vdc電源電壓
?NEMA 4外殼
?在嘈雜的環境中提高信噪比
?消除了激勵源中壓降的影響
?信號可能會從低阻抗源發送到數據系統
HONEYWELL傳感器UV-10系列其他型號：
HONEYWELL 060-6827-04
HONEYWELL 060-6827-04-01
HONEYWELL 060-6827-04-03
HONEYWELL hydrogen sulfide sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL傳感器 060-6827-04的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
HONEYWELL傳感器 060-6827-04技術數據
