AUTOTECH編碼器RL500系列產品參數
Specification | |
Electrical | |
Frequency | 2250 Hz |
Input Voltage | 1.88 V |
Input Current | 6mA |
Input Power | 6.5mW |
Open circuit Zro | 180+j256 ohms |
DC resistance (Rotor) | 18.3 Ohms |
Output voltage(Stator) | 2.63 V 5% |
Transformation ratio | 1.4 |
Mechanical | |
Max. Slew Speed (RPM) | 5000 |
Max. Shaft Loading Axial (lbs.) | 50 |
Radial (lbs.) | 100 |
Bearing Life at Max. | 2x109 |
Approx. Weight (lbs.) | 7 |
Environmental | |
Shock | 200g for 11mSec |
Vibrations | 20g to 2000Hz |
Operating Temperature | -57° to 248° F |
Storage Temperature | -85° to 302° F |
Enclosure | NEMA 13 |

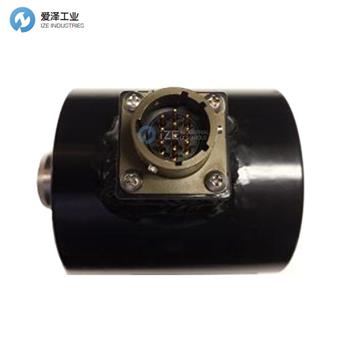

AUTOTECH編碼器RL500系列產品介紹
空心軸分解器SAC-RL500-xxx的尺寸為21，內部直徑為0.708英寸。
The hollow shaft resolver, SAC-RL500-xxx is a size 21, with 0.708” internal dia.

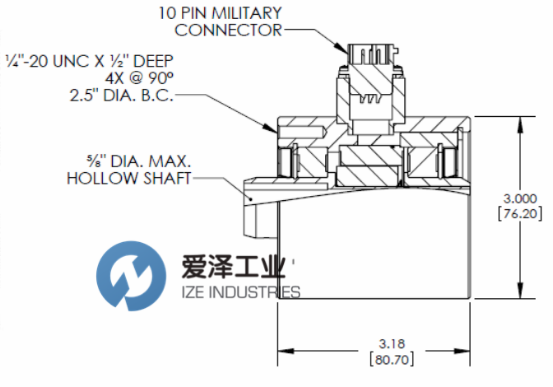

外觀尺寸
AUTOTECH編碼器RL500系列其他常見型號：
AUTOTECH SAC-RL100-M11
AUTOTECH SAC-RL100
AUTOTECH SAC-RL210
AUTOTECH E8R-RL101
AUTOTECH E8R-RL210-xxxMC
AUTOTECH E6R-RL101
AUTOTECH E7R-RL101
AUTOTECH SAC-RL101
AUTOTECH SAS-RL101-RM11
AUTOTECH Hollow Shaft Resolver NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AUTOTECH編碼器SAC-RL500-010的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AUTOTECH products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
AUTOTECH編碼器SAC-RL500-010產品參數
