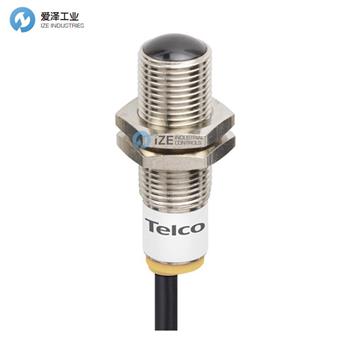

TELCO傳感器LR-110L-AP38-15產品參數
Specification | |
Product Data | |
Function | Receiver |
Housing Material | Plastic |
Housing | ?10 |
Connection | 5 m cable |
Sensing Range | Up to 40 m |
Optical Angle | +/- 3° (opening) |
Indicators | Yes |
Technical Data | |
Photo Transistor | Silicon NPN |
Power On Indicator | Green LED |
Output Indicator | - |
Light Source | - |
Cable | 2 x 0,25 mm2 |
Housing Material Sensor Housing | Polycarbonate |
Housing Material Lens Cover | Polycarbonate |
Transmitter Diode | - |
Cable Sleeve | PVC ? 4,0 mm |
Min. Cable Bending Radius | 45 mm |
Environmental Data | |
Vibration | 10 – 55 Hz, 0,5 mm |
Shock | 30 g |
Operation Temperature | – 25 to +65 °C |
Storage Temperature | – 40 to +80 °C |
Sealing Class | IP 67 |
Light Immunity 20? | > 100 000 lux |
TELCO傳感器LR-110L-AP38-15產品介紹
遠程傳感器系列由發射器LT和接收器LR組成，可與PA，MPA或PAB程序中的Telco光電放大器配合使用。
遠程傳感器可通過電纜或插頭連接在各種外殼中使用，并且可以在直通光束或漫射接近模式下使用。
該系列可提供可選的電源（LR）和輸出（LT）監視器LED，用于任何集成了傳感器LED驅動功能的Telco光電放大器。
The remote sensor series, which consists of a transmitter LT and receiver LR, is made to operate in conjunction with a Telco photoelectric amplifier from the PA, MPA or PAB programmes.
The remote sensors are available in a wide range of housings, with either cable or plug connection, and may be used in thru-beam or diffuse proximity mode.
The series is available with optional power-(LR) and output-(LT) monitor LEDs for use with any Telco photoelectric amplifier which has the sensor LED drive feature incorporated.
TELCO傳感器LR系列其他常見型號：
TELCO LR100AP3815
TELCO LR100AP385
TELCO LR100AP38T3
TELCO LR100S3015
TELCO LR100S305
TELCO LR100SG15
TELCO LR100SG5
TELCO LR100SGT3
TELCO LR100TB3815
TELCO LR100TB385
