RUBSAMEN&HERR溫度控制器TRS060產品參數
Specification | |
Supply voltage | 24 V4,±15% |
Switching capacity | Max.16 A |
Output | Relay with non-lsolated changeover contact |
Power consumption | 0.75 w |
Control range | o... 60℃ |
Switching difference (hysteresis) | Approx. 2 ...3K |
Sensor | Internal NTC |
Protection class | Ⅲ |
Degree of protection | IP20 |
Operating temperature | -10 …70℃ |
Storage temperature | -20 ...70℃ |
Admissible degree of humidity | Max. 95% r.h., non-condensing |
Electrical connections | Terminal screw 0.5 2.5 mm2 |
Housing material and colour | Polyamide PA 6.6 (UL94 V-0), light grey RAL 7035 |
Weight | 70 g |
Way of mounting / installation | on 35 mm DIN standard rail |

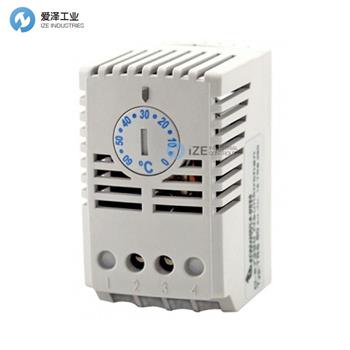

RUBSAMEN&HERR溫度控制器TRS060產品介紹
用于熱電冷卻器和加熱器
600高開關容量
小磁滯
控制范圍0 ... 60℃
35 mm DIN導軌安裝
For thermoelectric coolers and heaters
High DC switching capacity
Small hyteresis
Control range 0... 60℃
Mounting on 35 mm DIN rail
