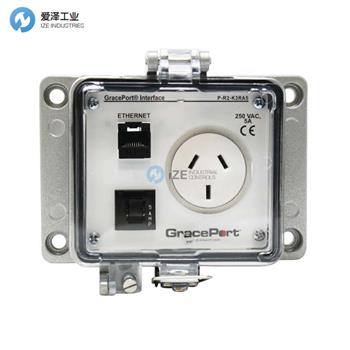

GRACEPORT以太網面板接口連接器P-R2-K3RA5技術參數
Component Details | |
Component Code | R2 |
Component Quantity | 1 |
Component Description | Category 5e RJ45 |
Component Type | Bulkhead |
Gender Front | RJ45 Female |
Gender Back | RJ45 Female |
Electrical Specifications | |
Power Type | International Australia, New Zealand & Republic of China Outlet |
Power VAC | 250 |
Power AMPs | 5 |
Power Type | International Australia, New Zealand & Republic of China Outlet |
Power VAC | 250 |
Power AMPs | 10 |
Circuit Breaker | 5A |
Mechanical Specifications | |
Enclosure Rating | IP65 |
Housing Size | K Size Housing |
UL Type | Type 4 |
L atch | Type 304 Stainless Steel |
Cover | Polycarbonate, UV rated |
Geometric Data | |
Width | 5.08 in |
Height | 3.54 in |
Depth | 1.60 in |
GRACEPORT以太網面板接口連接器P-R2-K3RA5介紹
Product Description
Panel Interface Connector that typically mounts to the outside of a control panel housing. These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e. We offer 15,000+ combinations of components and outlets.
產品描述
通常安裝在控制面板外殼外部的面板接口連接器。這些編程端口無需打開面板門，提高了安全性并符合NFPA 70e標準。提供超過 15,000 種組件和插座組合。
GRACEPORT以太網面板接口連接器P-R2系列其他常用型號：
GRACEPORT P-R2#2-K3RF5
GRACEPORT P-R2-K3RF2
GRACEPORT P-R2-K2RF0
GRACEPORT P-R2-K3RA0
GRACEPORT P-R2-K4RF3
GRACEPORT Ethernet panel interface connector NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GRACEPORT以太網面板接口連接器P-R2-K3RA5的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for GRACEPORT products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
