NORIS位置傳感器DWA系列技術參數
Technical data | |
Measuring principle | Change in resistance on the voltage divider |
Rotation angle | 360° without mechanical limitation |
Output signal | 2 signal outputs: 0 ... 2 kΩ |
Measuring range | 10° ... 320° in 10° steps (linear acquisition angle) |
Resolution | ∞ |
Linearity tolerance | < +/- 3% |
Load rating | 0.28 W per channel (24 V at 2 k? @ 40°C); centre tap max. 1 μA |
Vibration resistance | 4 g DIN IEC 60068-T2-6 increased stress, characteristic curve 2 (10–100 Hz) |
Shock resistance (impact) | 300 m/s2 at 18 ms dwell time DIN IEC 60068-T2-27 |
Climatic test | DIN IEC 60068-T2-30 |
Operating temperature | -40 ... 70 °C |
Storage temperature | -40 ... 70°C (max. peak values within 30 days/year at relative humidity of 5–95%) |
Humidity | RH max. 96% |
Insulation voltage | 1 kV |
Protection class | IP66 as per DIN VDE 0470 (IP68 on request) |
Electrical connection | Design 1: Terminals for max. 4 mm2, with M20 screw connection as per DIN EN 50262 |
Service life | > 5 million revolutions / speed < 400 rpm |
Installation position | Any (casing form can be rotated) |
Approvals | CE, ABS, BV, DNV-GL, MED |

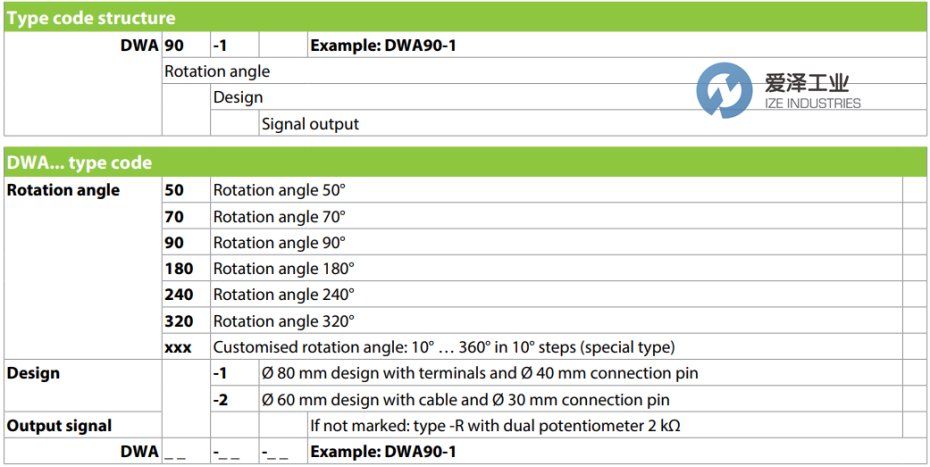

NORIS位置傳感器DWA系列介紹及選型

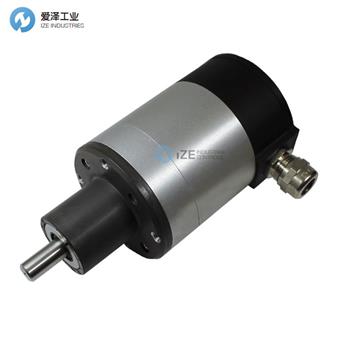

DWA型旋轉位置傳感器是堅固，免維護的傳感器，特別用于造船業，機械和工廠工程業，可將軸的機械旋轉角轉換為電信號（用于測量舵角或調節螺距）。
The type DWA rotary position sensors are robust, maintenance-free sensors that are particularly used in the Shipbuilding industry and machinery and plant engineering industry to convert the mechanical rotation angle of a shaft into an electrical signal (for measuring the rudder angle or adjusting the pitch).
NORIS位置傳感器DWA系列其他常用型號：
NORIS DWA70-1
NORIS DWA50-1
NORIS DWA90-1
NORIS DWA180-1
NORIS DWA240-1
NORIS DWA320-1
NORIS senser NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NORIS傳感器DWA70-1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NORIS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
NORIS傳感器DWA系列DWA70-1介紹及選型
