SENSORTHERM高溫計SS09技術參數
Technical Data | |
Model | SS09 |
Temperature ranges | 550 – 1400°C |
Temp. sub ranges | Any temperature sub-range adjustable within the temperature range (minimum span 50°C) |
Spectral range | 0.7–1.1 μm |
Detector | Silicon |
Response time t90 | 5 ms, adjustable up to 10 s |
Exposure time | 2.5 ms |
Uncertainty | 0.5% of reading in °C + 1°C |
Repeatability | 0.1% of reading in °C + 1 K |
Emissivity ε | 20–100% |
Analog output | 0/4–20 mA, switchable, isolated, max. load: 500 Ω. |
Serial interface | Optional RS232 or RS485 (addressable), baud rate 1.2 up to 57.6 kBd, |
Peak picker | Automatic hold mode or manual time settings to clear (reset) |
Parameter settings | Via serial interface and PC software SensorTools or via self-compiled communication program: |
Power requirement | 24 V DC (12–30 V DC), max. 1 VA |
Isolation | Voltage supply, analog output and serial interface are galvanically isolated from each other |
Sighting | Laser targeting light (red, λ=650 nm, P< 1 mW, class II to IEC 60825-1) |
Ambient temperature | 0–70°C |
Storage temperature | -20–85°C |
Relative humidity | No condensing conditions |
Housing / protection class | Stainless steel, IP65 to DIN 40 050 with connector |
Weight | 650 g |
CE label | According to EU directives for electromagnetic immunity |
SENSORTHERM高溫計SIRIUS系列特點介紹
2個波長范圍可用于250或550°C的溫度范圍
溫度子范圍可調，以提高模擬輸出的精度
全數字信號處理，不確定性低
快速數據采集，響應時間僅為5毫秒
可選擇不同的光學元件，光斑尺寸小至1.3 mm
激光目標標記，可精確對準測量對象
綠色LED電源指示燈
可切換的模擬輸出0 / 4-20 mA和串行接口RS232或RS485
使用隨附的軟件通過接口輕松配置設備
2 wavelength ranges available for temperature ranges from 250 or 550°C
Temperature sub range adjustable in order to increase the accuracy of the analog output
Full digital signal processing with low uncertainty
Fast data acquisition with a response time of only 5 ms
Different optics selectable with small spot sizes from 1.3 mm
Laser target marking for precise alignment to the measuring object
Green LED power indicator
Switchable analog output 0 / 4-20 mA and serial interface RS232 or RS485
Easy device configuration via interface using the supplied software
SENSORTHERM高溫計SIRIUS系列其他常用型號：
SENSORTHERM SS09 0550 1400 112 531-B
SENSORTHERM SS09
SENSORTHERM SI23
SENSORTHERM SI16
SENSORTHERM Pyrometer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SENSORTHERM高溫計SS09 0550 1400 112 531-B的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SENSORTHERM products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.

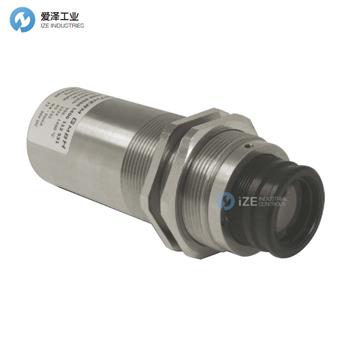

SENSORTHERM高溫計SS09 0550 1400 112 531-B產品介紹
