MICROE編碼器195-00299介紹
Specifications of Mercury? Series M1000 | |
Dimensions | 20.6 x 12.7 x 8.4 mm |
Interface, Digital | - |
Interface, Analog | 1 Vpp sin/cos with index |
Interpolation | up to ×256 in customer electronics |
Resolutions | 6.6K to 4.2M CPR |
Accuracy Class | up to +/- 2 arc-seconds |
Max Speed | 13,000 rpm |
Operating Environment | Atmospheric |
Dimensions | 20.6 x 12.7 x 8.4 mm |
Interface, Digital | - |
Grating Compatibility | |
R | |
Highest Accuracy Class | +/- 2 arc-seconds |
Diameters | up to 108mm |
Index | Yes |
Material | Soda lime glass |
Coefficient of Thermal Expansion | 8ppm/°C |
Mounting | Hub |
MICROE編碼器M1000系列介紹

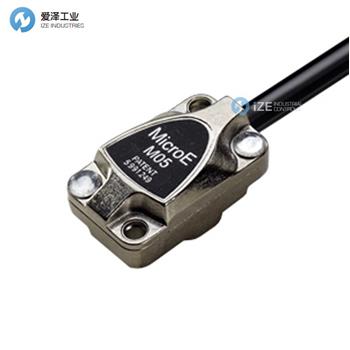

Mercury? 系列 – M1000
MicroE Mercury 1000 套件編碼器比其他任何編碼器都更小、更高性能、安裝速度更快且更易于使用。微型傳感器可以適應非常狹窄的空間，并具有廣泛的對準公差，便于快速和輕松的設置。
微型傳感器適用于狹窄空間
寬對準公差便于安裝和設置
模擬輸出可以通過客戶的電子設備插值，分辨率高達78納米
低功耗有助于系統的熱穩定性
Mercury? Series – M1000
MicroE Mercury 1000 kit encoders are smaller, higher performance, faster to install, and easier to use than any other encoder. The tiny sensor fits into very tight spaces, and has broad alignment tolerances for fast and easy setup.
Miniature sensor fits into tight spaces
Wide alignment tolerance make for easy installation and setup
Analog outputs can be interpolated by the customer’s electronics for resolution up to 78nm
Low power consumption aids in thermal stability of the system
MICROE編碼器其他常用型號：
MICROE 193-00114
MICROE 195-00299
MICROE M1000-M05
MICROE M1000-M10
MICROE M1000-M20
MICROE Encoder NEW + ORIGINAL+ ONE YEAR WARRANTY
