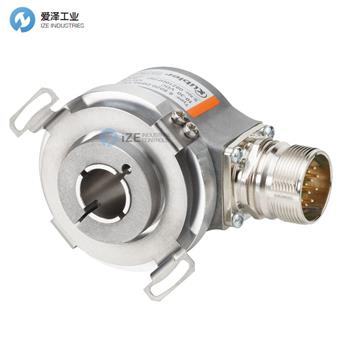

KUBLER編碼器8.5020.1852.1024技術參數
Type | 8.502 |
Flange | 1 = with spring element, long, IP66/IP67 |
Through hollow shaft | 8 = ? 15 mm [0.59“] |
Output circuit (with inverted signal) / supply voltage | 5 = push-pull / 10 ... 30 V DC |
Type of connection – cable | 2 = radial M12 connector, 8-pin |
Pulse rate | 1024 |
KUBLER編碼器5020系列介紹
Sendix 5000 / 5020 增量編碼器采用 Safety Lock? 設計的堅固軸承結構，具有特殊的抗振動和安裝誤差能力。穩定的壓鑄外殼、高達 IP67 的高防護等級以及從 -40 °C 到 +85 °C 的寬溫度范圍使其具有廣泛的用途。
Sendix 5000 / 5020 incremental encoders offer special resistance to vibrations and installation error due to their robust bearing construction using the Safety Lock? design. The stable die-cast housing, the high protection up to IP67 and the wide temperature range from -40 °C to +85 °C allow universal use.

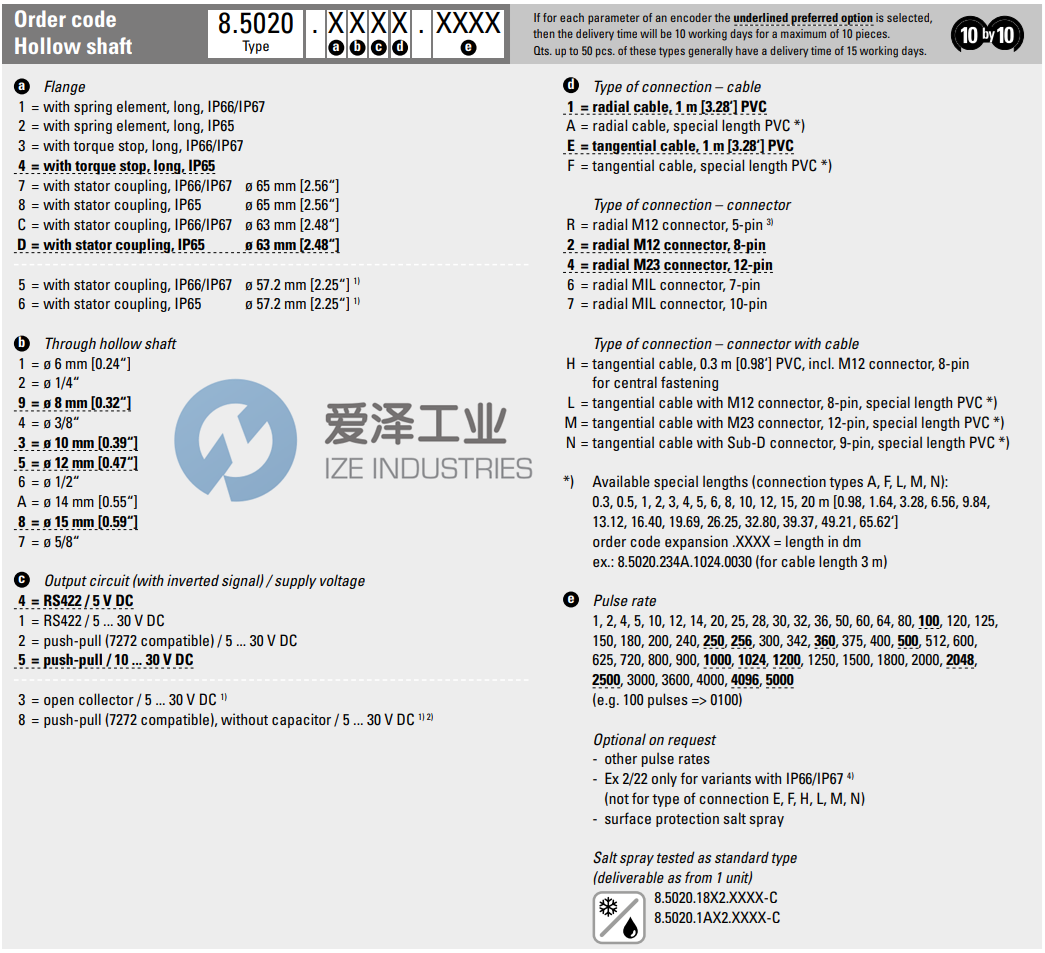

KUBLER編碼器5020系列選型
KUBLER編碼器5020系列其他常用型號：
KUBLER 8.5020.1352.0100
KUBLER 8.5020.4351.1024
KUBLER 8.5020.8351.1024
KUBLER 8.5020.D541.4096
KUBLER 8.5020.D552.1000
KUBLER 8.5020.1852.1024
KUBLER 8.5020.2A22.1024
KUBLER ENCODERS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KUBLER編碼器8.5020.1852.1024的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KUBLER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
KUBLER編碼器5020系列8.5020.1852.1024技術參數及選型
