TRI-TRONICS光電傳感器LERC技術參數
Adjustment Type: | Push Button |
Connection Type: | Connector, 4-pin M8 |
Housing Type: | Fork |
Supply Voltage: | 10 to 30 VDC |
Current Requirements: | 45mA (exclusive of load) |
Output Transistors: | (1) NPN and (1) PNP sensor output transistor |
Response Time | Light/Dark state response = 100 microseconds |
Hysteresis: | Minimal hysteresis promotes the detection between the backing material and the label depending on the settings. |
Pushbutton Control: | Automatic setup routines based on web opacity |
LED Light Source: | High intensity red LED |
Indicators: | Green LED flashes when AUTOSET routine is activated and stays illuminated when AUTOSET is completed. |
Light Immunity: | Responds to sensor’s pulse modulated light source, resulting in high immunity to most ambient light. |
Ambient Temperature: | -40°C to 70°C (-40°F to158°F) |
Rugged Construction: | Chemical resistant, high thermoplastic PPS housing |

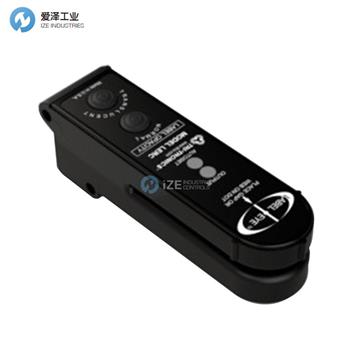

TRI-TRONICS光電傳感器LABEL?EYE系列介紹
LABEL?EYE 是一種特殊用途的間隙或槽傳感器，經過優化以檢測粘附在一卷底紙上的不干膠標簽。 標簽卷從卷筒中穿過剝離板或圍繞鋒利邊緣。 當卷材繞過剝離板的鋒利邊緣時，粘性標簽從背襯材料上剝離。 LABEL?EYE的功能是透過底紙觀察標簽之間的間隙，并在標簽完全脫離底紙之前通知貼標機停止分配機構。 隨著下一個標簽從剝離板的末端突出，它現在可以完美地貼在傳送帶上經過的下一個產品上。
The LABEL?EYE is a special purpose gap or slot sensor optimized to sense adhesive labels adhering to a roll of backing paper. The web of labels is directed from a roll across a peeler plate or around a sharp edge. As the web passes around the sharp edge of the peeler plate, the adhesive label peels from the backing material. The function of the LABEL?EYE is to look through the backing paper to detect the gap between the labels and signal the labeling machine to stop the dispensing mechanism before the label is completely dislodged from the backing material. With the next label protruding off the end of the peeler plate, it is now perfectly positioned to be applied to the next product as it passes by on a conveyor.
TRI-TRONICS光電傳感器LABEL?EYE系列其他常用型號：
TRI-TRONICS LER
TRI-TRONICS LERC
TRI-TRONICS LERR
TRI-TRONICS LERRC-M12
TRI-TRONICS LERC-M12
TRI-TRONICS photoelectric sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TRI-TRONICS光電傳感器LERC的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TRI-TRONICS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
