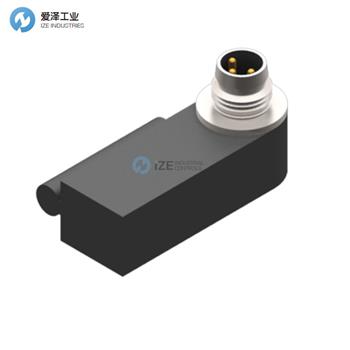

GIMATIC磁性傳感器SM4D225-G技術參數
| Sensor with cable | SM4D225-G |
| Sensor type | 3-wire reed Normally Open |
| Power supply | 3÷30 Vac/dc |
| Switching current | 1 A |
| Power rating (Ohmic load) | 10 W |
| Nominal switching point | 25÷30 AT |
| ON-OFF differential | 5÷10 AT |
| ON switching time | 0.5 ms |
| OFF switching time | 0.5 ms |
| Operating temperature | -10÷70°C |
| Switching frequency | 500 kHz |
| Electric service life | 107 imp. |
| Piston speed | 10 m/s |
| Reverse polarity protection | Yes |
| Protection rating | IP 67 |
| Sensor body material | PA; AISI 303; OT63 |
| Standard cable length | 2.5 m (flying cable) -SNAP/12 connector |
| Sheathing - insulation | PVC CEI 20-22II O.R. |
| Leads | 0.25 mm2 / AWG 24 / 32 x 0.10 mm2 |
| M8 connector material | PUR / gold-plated brass |
GIMATIC磁性傳感器SM4D225-G介紹
Description
Magnetic sensor with fastening by tie-rod, series SM, PNP REED N.O. 3 wires, 3/30 Vdc, 1 A, round PVC cable 3x0.25mm2, 2.5 metres
描述
SM、PNP REED N.O. 系列帶拉桿緊固的磁性傳感器 3 根電線,3/30 Vdc,1 A,圓形 PVC 電纜 3x0.25mm2,2.5 米
GIMATIC磁性傳感器其他常用型號:
GIMATIC SM1C525-G
GIMATIC SM4D225-G
GIMATIC SM4N225-G
GIMATIC SM4M225-G
