ID no.

1650060

Special version

S304 corresponds to:
2 × Ni../Bi..-..-AP(N)6/S34. Function for DeviceNet. Defined length at connector FS4.4/FS4.4K or FSF5.5/FSF5.5K (with PE connection) or FS4.4X3. Example for order : Ni2-Q6.5-AP6-0.1-FSF4.4X3/S304

Rated switching distance

2 mm

Mounting conditions

Non-flush

Secured operating distance

≤ (0.81 × Sn) mm

Correction factors

St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4

Repeat accuracy

≤ 2 % of full scale

Temperature drift

≤ ± 10 %

Hysteresis

3…15  %

Ambient temperature

-25…+70 °C

Operating voltage

10…30  VDC

Residual ripple

≤ 10 % U ss

DC rated operational current

≤ 150 mA

No-load current

20  mA

Residual current

≤ 0.1 mA

Isolation test voltage

≤ 0.5 kV

Short-circuit protection

yes / Cyclic

Voltage drop at I e

≤ 1.8 V

Wire breakage/Reverse polarity protection

Complete

Output function

4-wire, NO contact, PNP

Smallest operating current

≥ 1 mA

Switching frequency

0.03 kHz

Design

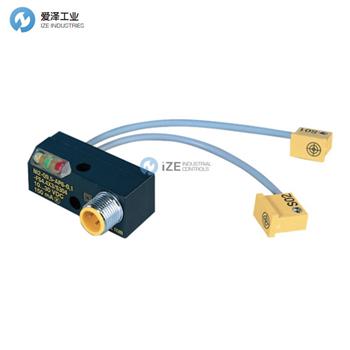

Monitoring Kit for Spanners, Q9,5

Dimensions

47 x 18 x 18  mm

Housing material

Metal, PBT-GF20-V0

Active area material

Plastic, PP GR-20

Electrical connection

Connector, M12 × 1

Cable quality

? 2  mm, Gray, Lif9Y-11Y, PUR, 0.1  m

Core cross-section

3 x 0.08  mm2

Litz wire

40 x0.05 mm

Vibration resistance

55 Hz (1 mm)

Shock resistance

30 g (11 ms)

Protection class

IP67

MTTF

2283  years acc. to SN 29500 (Ed. 99) 40 °C

Power-on indication

LED, Green

Switching state

2 × LEDs, Yellow/Red
