PCB傳感器039237-50022/B技術參數
Performance | |
Measurement Range(Full Scale Capacity) | 22.6 Nm |
Sensitivity(output at rated capacity) | 2.0 mV/V |
Non-Linearity | ≤ 0.25 % FS |
Hysteresis | ≤ 0.25 % FS |
Non-Repeatability | ≤ 0.05 % FS |
Interchangeabilty | ≤ 0.30 % FS |
Environmental | |
Overload Limit | 33.9 Nm |
Temperature Range(Operating) | -18 to +93 °C |
Temperature Range(Compensated) | +21 to +66 °C |
Temperature Effect on Output(Maximum) | ± 0.0018 %Reading/°C |
Temperature Effect on Zero Balance(Maximum) | ± 0.0018 %FS/°C |
Electrical | |
Bridge Resistance | 350 Ohm |
Excitation Voltage | 10 VDC |
Insulation Resistance | ≥ 5 GOhm |
Zero Balance | ≤ 2 % FS |
Counts Per Revolution | 1472 |
Resolution w/ Quadrature | 1/4 ° |
Output Voltage | High 5V to Low 0.5V |
Power Required(maximum) | 5 VDC @ 120mA |
Magnetic Encoder(Poles) | 360 |
Shunt Calibration | ≤ 0.25 % FS |
Auto ID | TTL Proprietary |
Physical | |
Size (Shaft Length x Housing Length x Housing Height) | 82.0 mm x 58.4 mm x 50.8mm |
Weight | 386 gm |
Mounting | 9.52 mm Sq Drive |
Sensing Element | Strain Gage |
Housing Material | Aluminum |
Shaft Material | Steel |
Electrical Connector | PT02H-12-10P |
Maximum Speed | 2500 RPM |
PCB傳感器039237-50022/B產品介紹

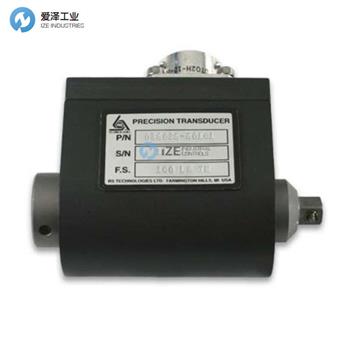

旋轉扭矩角度傳感器，帶Auto-ID，200 lbf-in (22.6 Nm)，3/8 英寸方形驅動，10針PT插座
Rotary Torque Angle Transducer, w/Auto-ID, 200 lbf-in (22.6 Nm), 3/8-inch Square Drive, 10-pin PT Receptacle

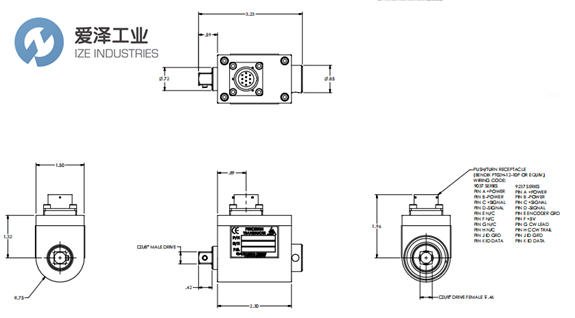

PCB傳感器039237-50022/B技術尺寸
PCB傳感器PC9000系列其他常用型號：
PCB 039230-50002/B
PCB 039230-50021/B
PCB 039230-50101/B
PCB 039225-50101/B
PCB 039237-50022/B
PCB 039237-50051/B
PCB 039250-50101/B
PCB 039250-51201/B
PCB 039275-50301/B
PCB 039275-51501/B
PCB 039275-53601/B
PCB 039201-53102/B
PCB 039201-01302/B
PCB 039201-53302/B
PCB 039301-01103/B
PCB 039625-00183/B
PCB TRANSDUCER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PCB傳感器039237-50022/B的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PCB products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
PCB傳感器039237-50022/B技術參數及尺寸
