MBS傳感器101I系列規格描述
Technical data | |
Measuring input | |
Nominal frequency: | 50/60 Hz |
Nominal input current: | Acc. to type 0 - 1 or 0 - 5 A non-standard ranges 0 - 0.8 to 0 - 1.2 A or 0 - 4 to 0 - 6 A |
Own consumption: | ≤ 5 mV · IN with input end value |
Measuring output | |
DC current: | 0 - 1 to 0 - 20 mA resp. live-zero 0.2 - 1 to 4 - 20 mA |
Burden voltage: | 15 V |
External resistance: | See Section “5. Electrical connections” |
With 2-wire connection: | Power supply via output leads, 4 - 20 mA, External resistance see Section “5. Electrical connections” |
Safety | |
Pollution degree: | 2 |
Installation category: | III |
Reference conditions | |
Operating temperature: | – 10 to + 55 °C |
Storage temperature: | – 40 to + 70 °C |
Relative humidity of annual mean: | ≤ 75 % |
Altitude: | 2000 m max. |
MBS傳感器101I系列介紹

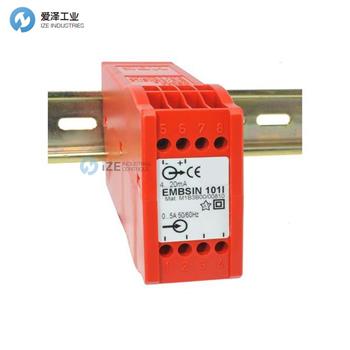

The transducer EMBSIN 101 I is designed to convert a sinusoidal AC current into a DC current or voltage proportional to the measured value.
EMBSIN 101 I 傳感器設計用于將正弦交流電流轉換為與測量值成比例的直流電流或電壓。
MBS傳感器101I系列其他常用型號：
MBS 101I-M1B2A0
MBS The electromagnetic valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MBS傳感器101I-M1B2A0的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MBS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
