LAHTI稱重變送器WA-903+技術參數
No. of measuring channels | 4 or 8 |
Measuring frequency | 132 /s per each channel |
Resolution | 24 bit (16.7 million) |
No. of increments in certified application | 10000e, EN45501/OIML R76 class III(-30…+50°C) |
No. of increments (e) | n ≤ 10000 |
Min signal/channel | ?Umin ≤ 0,5 μV/e |
Signal range/channel | Ue 0…19 mV |
Excitation voltage | Uexc 5 VAC |
Load cell impedance /channel | RL min 43 ? |
Max length of interconnection cable 6-wire connection | L/A 1000 m/ mm2 |
Operating temperature (certified/process usage and storage) | -30…+50°C /-30…+60°C |
Supply voltage | 24 VDC (9-36 V) max 5 W |
Parameter memory | EEPROM, FLASH |
Clock/calender | Real time clock, 2 weeks back-up time |
Serial interface, fixed | S1: RS 485 2-wire, isolated |
Ethernet interface | Full duplex 100 Mbaud ModBus/TCP or Ethernet/IP (option) |
Fieldbus, options | Profibus DP Modbus RTU DeviceNet |
Digital inputs | 6 pcs, 24V/5mA, optoisolated |
Digital outputs | 6 pcs, 24V/50mA (9…35V), optoisolated |
Analog input (option) | mA, V |
Analog output (option) | 0/4…20 mA, RL ≤ 500 ? tai 0…10V max 50 mA, galvanically isolated |
Casing | 260x160x90 (LxBxH) polyester IP66 |
Weight | 3,0 kg |

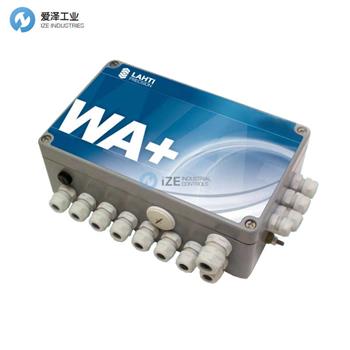

LAHTI稱重變送器WA-903+產品介紹
WA-903+ 是一款穩定的稱重變送器，專為方便設備連接和現場安裝而設計。
WA-903+的特殊之處在于它為每個傳感器配備了一個單獨的測量通道，最多可以連接8個設備。每個單獨傳感器的 A/D 轉換由其自己的轉換器獨立完成并進行數字匯總。
? 校準過程中的自動角調整
? 可以輕松測量秤的重量分布
? 在故障情況下，故障傳感器被快速定位
? 使用單個變送器即可實現具有多個秤的稱重系統
? 可以在同一秤上使用不同類型的稱重傳感器
WA-903+ is a stable weighing transmitter designed especially for the ease of device connectivity and field installation.
WA-903+ special features are that it has a separate measuring channel for each sensor, which can be connected to up to 8 devices. The A/D conversion of each individual sensor is done independently by its own converter and digitally summed up.
? Automatic corner adjustment during calibration
? The weight distribution of the scale can be easily measured
? During the fault situation the faulty sensor is quickly localized
? Weighing systems with several scales can be realized with a single transmitter
? Possibility to use load cells of different type in the same scale
