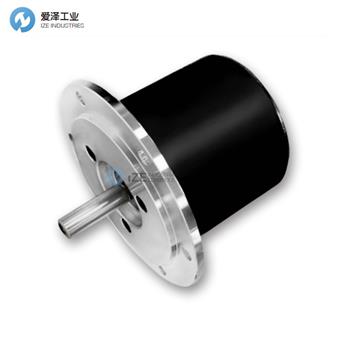

TEKEL編碼器TK121系列技術參數
TECHNICAL CHARACTERISTICS | |
Models | TK121 bi-directional+ zero index |
MECHANICAL CHARACTERISTICS | |
Assembly | F Square flange |
Mass | 0,7 Kg |
Slewing speed | 12,000 rpm for short period; 6,000 rpm for normal operation; 2,000 rpm with shaft seal |
Shaft diameter | 10 mm |
Hollow shaft | Not available |
Shaft seal | Available |
Starting torque at 25℃ | 0,025 Nm without shaft seal; 0,040 with shaft seal |
Starting inertia | 40 gr/cm |
Acceleration | 150.000 rad/sec(rad galss); |
Ball bearing working life | 10 revolutions min |
Low torque | Not available |
Shaft loading | axial 200 N; radial 200 N |
MATERIALS | |
Mainframe | "Al" ± thermally stabilised and anodised |
Housing | Cast "Al" ± painted with oven treating at 180℃ |
Shaft | Stainless steel |
Light source | GaAsAl infrared light emitting diode MTFB 10 hrs min. |
Receivers | Two opto-receivers in push-pull for each channel |
ENVIRONMENTAL CHARACTERISTICS | |
Operating temperature | -10 + +70℃ ; -25 ± +85℃ optional |
Storage temperature | -30 + +80℃ |
Humidity | Up to 98% RH without condesation |
Protection | K4 IP 64 DIN 40050; |
Vibrations | 10 g (10 + 2000 Hz) |
Shock | 20 g for 11 ms |
TEKEL編碼器TK100系列選型
TEKEL編碼器TK100系列其他常用型號：
TEKEL TK121.F.1000.5.S.K4.9.52.S10.LD
TEKEL TK121-1024-24/5.S.11.L.LD.K6.DP
TEKEL TK121.FRE.2048.11
TEKEL TK121.FRE 1024.11/30 .S.K4.10 L07.PP2-1130
TEKEL TK120.FRE.1000.11/30S.K4.11.L07.PP3
TEKEL TK120.FRE.1000.11/30S.K4.11.L07.LD2/1130
TEKEL TK121.FRE.1024.N/30.3K4.10.10TPP2-1130
TEKEL TK121.FRE.1000.11/30.S.K5.10.L07.PP2-1130
TEKEL ENCODERS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TEKEL編碼器TK121.FRE.1000.11/30.S.K5.10.L07.PP2-1130的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TEKEL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
