GIESSEN HUBNER編碼器FG 2 / FGHJ 2系列技術參數
Basic device | |
Pulse rate | 600 / 1024 / 2048 symmetrical square pulses |
Supply voltage | 12 – 30 V DC |
No-load current | approx. 50 mA at 24 V |
On-load current | ≤ 150 mA peak |
Pulse height | HTL, approx. as supply voltage (Alternatively: TTL signal output) |
Max. frequency | 200 kHz |
Device temperature range | - 25 ... + 85 °C Other temperature ranges on request |
Electronic overspeed switch (Option S) | |
Switching voltage / current | max. 30 V DC / max. 0,5 A DC |
Number of switches | 1 (Switch opens when the speed exceeds the set value) |
Switching speed (set ex works) | 0.5 – 6300 rpm |
Switching hysteresis | 0.1 |
Integrated FOC transmitter (Option FOC) | |
Fiber geometry | 50 / 125 μm or 62.5 / 125 μm |
Second incremental output (Option AKK) | |
Fundamental principle | Second scanning function via redundant / additional electronics |
General | |
Degree of protection | P66 |
Vibration resistance | 20 g (≤ 200 m/s2) |
Shock resistance | 200 g (≤ 2000 m/s2) |
Device temperature range | - 25 ... + 85 °C |
Weight | approx 2 kg |

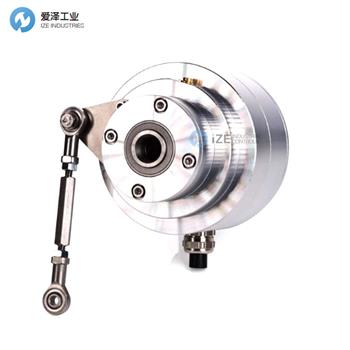

GIESSEN HUBNER編碼器FG 2 / FGHJ 2系列介紹
安全性
? 具有堅固外殼的最先進的電子設備
? 具有高動載額定值的大型軸承
? 空心軸設計帶有絕緣軸承和扭矩支架
? 高質量EMC 電纜鎖緊套
? UL / CSA證書
safe
? State-of-the-art electronics in a robust, thick-walled housing
? Large bearings with high dynamic load rating
? Hollow shaft design with insulated hybrid bearings and robust torque bracket with ball joints
? High-quality EMC cable clamps
? UL / CSA certifi cation
靈活性
? 轉速最高至 7000 rpm
? 可選電子超速開關(選項S)
? 可選第二增量輸出(選項AKK)
? 可選集成光纖變送器(選項FOC) 帶有光纜破損監控
? 多種空心軸尺寸
flexible
? Speed up to max. 7000 rpm
? Optional additional electronic overspeed switch (Option S)
? Optional second incremental output (Option AKK)
? Optional integrated FOC transmitter (Option FOC) with FOC break detection
? Variety of hollow shaft diameters
可靠性
? 長使用壽命和高可靠性
? 高抗沖擊性和抗振蕩性
? 高防護等級 IP66
? 不銹鋼軸
? 溫度范圍 -25 °C 到 +85 °C
reliable
? Long service life and high levels of availability
? High shock and vibration resistance
? High degree of protection IP66
? Shaft made of stainless steel
? Temperature range from -25 °C to +85 °C
舒適性
? 舒適化的操作源于一個帶有LED顯示電源狀態的超大尺寸的端子箱。
? 抗振的彈性連接端子和用于光纖選項的ST接頭，便于連接。（見第9頁圖片）
? 或選擇 ITT-Cannon 連接器。
? 個性化解決方案的服務和咨詢
comfortable
? User-friendly start-up thanks to a generously sized axial terminal box with status LED to indicate power is ?on“
? Easy cable connection due to vibration-proof, spring-loaded terminals or ST connectors for option FOC
? Alternatively with ITT-Cannon connector
? Service and consultation for individual solutions

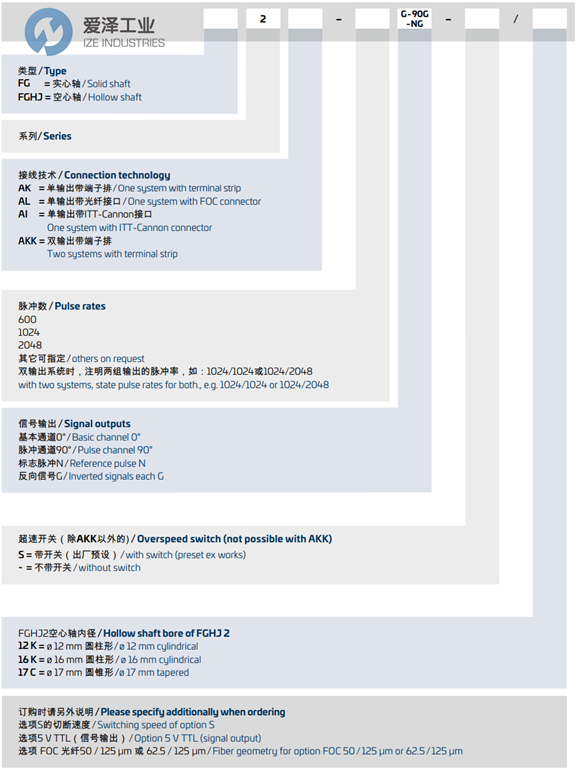

GIESSEN HUBNER編碼器FG 2 / FGHJ 2系列選型
GIESSEN HUBNER編碼器FG 2 / FGHJ 2系列其他常用型號：
GIESSEN HUBNER FGHJ2AK-2048G-90G-NG/16K
GIESSEN HUBNER FGHJ2AK-1024G-90G-NG/16K-S/17C
GIESSEN HUBNER FGHJ2AK-1024G-90G-NG/16K
GIESSEN HUBNER Encoders NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GIESSEN HUBNER編碼器FGHJ2AK-1024G-90G-NG/16K的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GIESSEN HUBNER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
GIESSEN HUBNER編碼器FG 2 / FGHJ 2系列FGHJ2AK-1024G-90G-NG/16K技術參數及選型
