AVENTICS接近傳感器0830100487技術參數
Specifications | |
Direct mounting for series | KHZ |
Slot width | 9 mm groove |
Type of contact | electronic PNP |
Nominal current, actuated state | < 7 mA |
Quiescent current (without load) | < 3 mA |
Protection class | IP67, IP65 |
Min. ambient temperature | -10 °C |
Max. ambient temperature | 70 °C |
Voltage drop U at Imax | ≤ 2,0 V |
DC switching current, max. | 0.2 A |
Max. switching frequency | 2000 Hz |
Switching point precision | ±0,1 mT |
LED status display | Yellow |
Electrical connection 2, type | Plug, M8 |
Electrical connection 2, number of poles | 3-pin |
Operating voltage DC, min. | 12 V DC |
Operating voltage DC, max. | 36 V DC |
Short circuit resistance | Protected against polarity reversal, short circuit resistant |
Shock resistance | 100 g / 11 ms |
Vibration resistance | 60 g (50 ... 2000 Hz) |
Housing material | Polyamide |

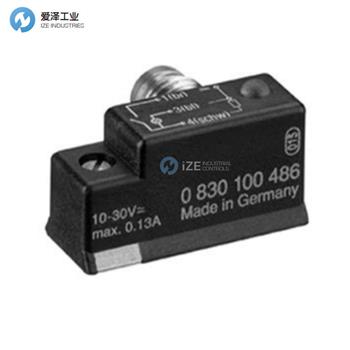

AVENTICS接近傳感器ST9系列介紹
AVENTICS ST9 系列傳感器專為短行程氣缸開發，提供精益設計和實用操作。它們可輕松滑入 9 毫米的燕尾螺母中，并可使用一顆螺釘牢固地固定。特別是對于極短的氣缸，位于外殼側面的電氣連接可以輕松擰緊和拆卸線路。
特征
適用于 9 mm 燕尾螺母
具有不同線路長度和連接的廣泛版本
直接在傳感器外殼上使用 M8 插頭或自由線端
服務友好，因為線路可以直接安裝在外殼上
提供簧片和電子 PNP 傳感器版本
The AVENTICS Series ST9 sensors are specifically developed for short-stroke cylinders and offer a lean design and practical handling. They slide easily into the 9 mm dovetail nut and can be securely fastened with a single screw. Especially with extremely short cylinders, the electrical connection located at the side of the housing enables easy tightening and removal of the lines.
Features
Suitable for 9 mm dovetail nut
Wide range of versions with different line lengths and connections
With a M8-plug directly on the sensor housing or free wire ends
Service-friendly, since the line can be mounted directly on the housing
Reed and electronic PNP sensor versions available
