CHEMITEC溶解氧傳感器S423/C/OPT技術參數
TECHNICAL DATA | |
Materials | ? AISI 316 and PVC body |
Thread | 3/4” BSP |
Measuring ranges | 0,00 mg/L to 20,00 mg/L |
Measuring method | Optical measure by luminescence |
Calibration method | Calibration on air: 1-point calibration, Water saturated with air at 100% |
Resolution | 0,01 mg/L |
Accuracy | ± 0,2 mg/L when < 5mg/L |
Repeatability | ± 0,1 mg/L |
Response | T90 < 60s |
Maximum refreshing time | < 1 second |
Working temperature | 0÷50 °C Accuracy ± 0.2°C |
Max working pressure | 5 bar |
Max absorption | 2W |
Mechanical protection | IP68 Sensor + cable |
Cable | 10m integral |
Power supply | 12...24Vdc |
Signal interface | RS-485 Modbus RTU Protocol (4-20mA opt.) |
Water move | No necessary move |
Compensation of temperature | Via internal NTC |
Luminophore diameter | 10 mm |
Connector IP67 | Yes |
CHEMITEC溶解氧傳感器FT 25-BH系列介紹

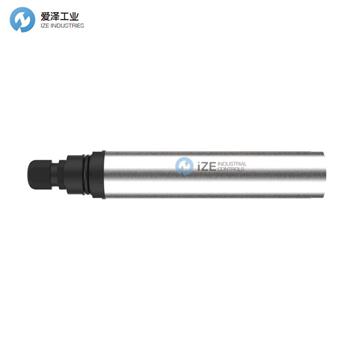

S423C/OPT
Digital sensor for Dissolved oxigen and temperature Fluorescence optical method of measurement. Staineless or PVC body for waste and raw waters
S423C/選擇
用于溶解氧和溫度熒光光學測量方法的數字溶解氧傳感器。 用于廢水和原水的不銹鋼或 PVC 閥體
CHEMITEC溶解氧傳感器其他常用型號：
CHEMITEC S423/C/OPT
CHEMITEC Dissolved Oxygen Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
