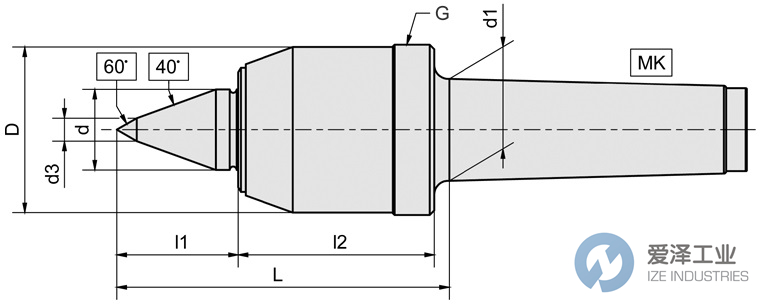

CONZELLA活頂尖855 Kop技術參數
|
 | |
| MK: | 5 |
| D: | 72 |
| d: | 35 |
| d1: | 44.4 |
| L: | 146 |
| l1[mm]: | 53 |
| l2[mm]: | 82 |
| d3: | 10 |
| Maximum speed [1/min]: | 8000 |
| Workpiece weight max. [kg]: | 800 |
| Concentricity deviation max. [mm]: | 0.003 |
| Extraction thread [G]: | M 74 x 1.5 |
| Max. axial pressure [kN]: | 10.35 |

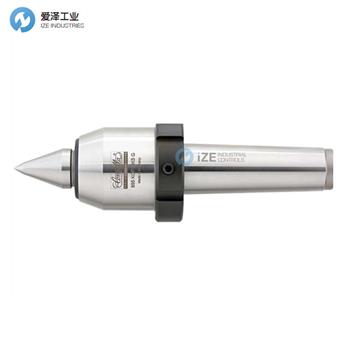

CONZELLA活頂尖805 Kop系列介紹
· 高性能配置,專為數控車床設計
· 細長的中心點 [KOP] 可改善受限工作區域內工件的接觸
· 拉緊螺母符合 Conzella 工廠標準
· 適用于高轉速和軸向負載
· 高端軸承實現高同心跳動精度
· 完整的工具硬化和研磨
· 免維護潤滑
· 旋轉軸密封可防止污垢和冷卻液滲透
· 帶附加密封件,也適用于磨削應用
· High-performance configuration, intended specifically for CNC lathes
· Slim center point [KOP] for improved access to workpieces in restricted working areas
· Draw-off nut according to Conzella factory standard
· For high rotary speeds and axial load
· High concentricity run-out accuracy through highend bearings
· Complete tool hardened and ground
· Maintenance-free permanent lubrication
· Rotary shaft seal prevents penetration of dirt and coolant
· With additional seal, also suitable for grinding applications
CONZELLA活頂尖805系列其他常用型號:
CONZELLA 835 Kop
CONZELLA 845 Kop
CONZELLA 855 Kop
CONZELLA 865 Kop
CONZELLA CENTER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CONZELLA活頂尖855 Kop的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for CONZELLA products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
