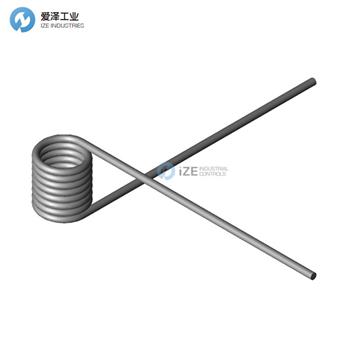

GUTEKUNST彈簧T-18661L技術參數
| |||

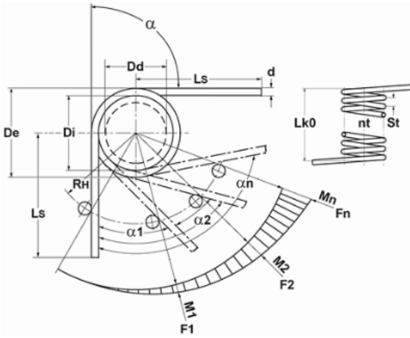

Technical Data | |||
Formula symbols | Value | Unit | Description |
Material | EN 10270-3-1.4310 | - | Type of material . |
Coiling direction | Left | - | Coiling direction |
Leg position | 270 | degree | L eg position when relaxed |
alpha1 | degree | prestressed rotational angle | |
F1 | N | prestressed spring force | |
M1 | Nmm | torque by angle alpha1 | |
alpha2 | degree | loaded rotational angle | |
F2 | N | loaded spring force | |
M2 | Nmm | torque by angle alpha2 | |
alphah | degree | working rotational angle | |
d | 1.25 | mm | Wire diameter |
Di | 6.75 | mm | inner coil diameter |
Dd | mm | diameter of mandrel | |
L .sH | mm | leg length of the lever leg | |
L _sR | mm | leg length of the recumbent leg | |
L k0 | 10.94 | nm | length of spring body |
Ls | 50 | mm | leg length |
RH | mm | leverage | |
Mntol | 55.26 | Nmm | (+/-) Tolerance maximum torque |
Mn | 212.15 | Nmm | maximum torque |
alphan | 106.89 | degree | maximum rotational angle |
nt | 7.75 | pc. | total number of coils |
Ddmax | 6 | mm | maximum possible mandrel diameter |
Ddmin | 5.4 | mm | Min. possible mandrel diameter |
Ditol | 0.19 | mm | (+/-) tolerance of inner coil diameter |
Weight | 2.8518 | g | weight of one spring |
Price aroup | J | - | price group |
GUTEKUNST彈簧其他常用型號：
GUTEKUNST T-18702L
GUTEKUNST T-18702R
GUTEKUNST T-18706L
GUTEKUNST T-18706R
GUTEKUNST T-18661L
GUTEKUNST T-18710R
GUTEKUNST T-18727L
GUTEKUNST T-18727R
GUTEKUNST T-18731L
GUTEKUNST T-18731R
GUTEKUNST Springs NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GUTEKUNST彈簧T-18661L的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GUTEKUNST products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
GUTEKUNST彈簧T-18661L技術參數及介紹
