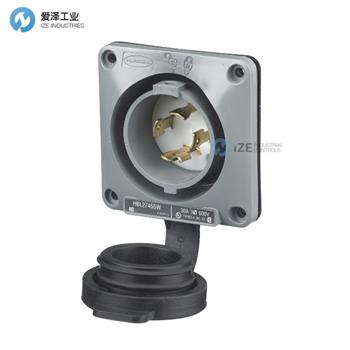

HUBBELL插座HBL2745SW技術參數
General | |
Application | |
Catalog Number | HBL2745SW |
Color | |
Environmental Conditions | Watertight |
EU RoHS Indicator | Yes |
Insulation | Insulated Body |
Item Type | 30A Watertight Safety-Shroud? Flanged Inlet |
Material | Thermoplastic |
Material - Mounting Hardware | Screw Mounting |
Number Of Poles | 3-Pole |
OEM Brand Name | Hubbell Wiring Device-Kellems |
Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
Dimensions | |
Dimensions | 3.75 in x 3.75 in x 2.44 in |
Display Size | Standard Sized Product |
Height | 2.44 in |
Length | 3.75 in |
Weight | 0.65 lb |
Width | 3.75 in |
Electrical Ratings | |
Amperage Rating | 30 A |
Connectivity | Back Wired Screw Terminals |
Current / Amperage Rating | 30 A |
Current Rating | 30 A |
Dielectric Strength | Withstands 2,000V minimum |
Phase | Three Phase |
Voltage Rating | 600 V |
Voltage Rating Description | 600 V |
Conductor Related | |
Number Of Wires | 4-Wire |
Wire Size | #16 AWG to #8 AWG |
HUBBELL插座其他常用型號：
HUBBELL HB L2740AR
HUBBELL HB L2740SR
HUBBELL HB L2740SR2
HUBBELL HB L2740SW
HUBBELL HB L2741SW
HUBBELL HB L2743SW
HUBBELL HB L2745SW
HUBBELL socket NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HUBBELL插座HBL2745SW的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HUBBELL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
