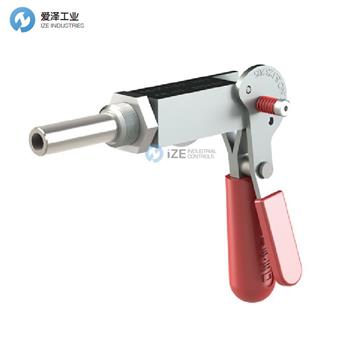

DESTACO氣動夾鉗6004-MMR技術參數
| Product Details | |
| Maxmum Holding Capacity (N) | 2000 |
| Imperial or Metric Product | Metric |
| Plunger Travel (mm) | 38.1 |
| Weight (kg) | 0.4 |
| Plunger Height (mm) | 11.2 |
| Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 14.4:1 |
| Mounting Nut (Supplied) | 606104-M |
| Plunger | Round |
| Plunger Thread | M8 |
| DistributorGroup | Workholding (Manual, Power and Hydraulic Clamps) |
| Spindle (Recommended) | 207203-M |
| Product Function | Clamping |
| Base Mounting Style | Flange |
| Product Series | 6004 |
| Standard Material | Steel |
| Toggle Lock Plus | Yes |
| Spindle Included? | No |
| Product Type | Threaded Body |
DESTACO氣動夾鉗6000系列介紹
用于組裝、固定裝置檢查、焊接和張緊裝置的直線動作夾鉗 – 6000 系列
DESTACO 的 6000 系列直線動作夾鉗的夾持能力比 604 型高出 2-3 倍,可通過孔或螺紋孔內安裝,并在伸出和縮回位置鎖定在中心。這些夾鉗的常見應用包括組裝、固定裝置檢查、焊接和張緊裝置。
STRAIGHT LINE ACTION CLAMPS FOR ASSEMBLY, FIXTURE CHECKING, WELDING & TENSIONING DEVICES – 6000 SERIES
DESTACO’s 6000 Series straight line action clamps feature up-to 2-3 times more holding capacity than the Model 604, may be mounted through a hole or inside a tapped hole, and lock over center in the extended and retracted position. Common applications for these clamps include assembly, fixture checking, welding, and tensioning devices.
DESTACO氣動夾鉗其他常用型號:
DESTACO 6024-SS
DESTACO 6024-RSS
DESTACO 6024-R
DESTACO 6024-MMSS
DESTACO 6024-MMRSS
DESTACO 6024-MMR
DESTACO 6024-MM
DESTACO 6024
DESTACO 6004-SS
DESTACO 6004-RSS
DESTACO 6004-R
DESTACO 6004-MMSS
DESTACO 6004-MMRSS
DESTACO 6004-MMR
DESTACO 6004-MM
DESTACO 6004
DESTACO 6002-SS
DESTACO 6002-RSS
DESTACO 6002-R
DESTACO 6002-MMSS
DESTACO 6002-MMRSS
DESTACO 6002-MMR
DESTACO 6002-MM
DESTACO Pneumatic clamp NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DESTACO氣動夾鉗6004-MMR的疑問,請隨時與我們電聯,(021-3100 6702),我們將盡全力解決您的問題。
If you have any question for DESTACO products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
DESTACO氣動夾鉗6004-MMR介紹
