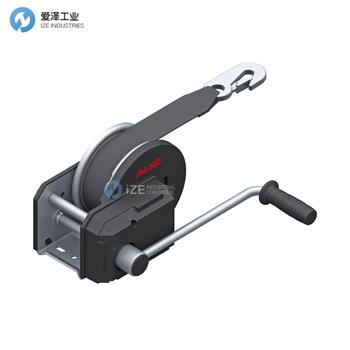

AL-KO絞車901 PLUS產品介紹
Type | 901 Plus A |
Tensile load | 900 kg |
Vertical lifting of loads Gradient 0% | 330 - 900 kg |
Horizontal and inclined pulling of a non-rolling load (guide values) Friction factor approx. 0.5 % Gradient 10 % | 550 - 1.500 kg |
Horizontal and inclined pulling of a non-rolling load (guide values) Friction factor approx. 0.5 % Gradient 20 % | 500 - 1.300 kg |
Horizontal/inclined pulling of a non-rolling load (guide values) Friction factor approx. 0.5 % Gradient 30 % | 400 - 1.150 kg |
Pulling a rolling load at an angle (guide values) Gradient 10% | 2.100 - 5.800 kg |
Pulling a rolling load at an angle (guide values) Gradient 20% | 1.300 - 3.600 kg |
Pulling a rolling load at an angle (guide values) Gradient 30 | 1.000 - 2.700 kg |
AL-KO絞車Cable winches PLUS介紹
電纜卷揚機 PLUS
主要優點
高品質防腐蝕保護
自動負載壓力剎車
配備普通軸承的卷盤
可選配自動絞線器（用于繩索或帶子）
可拆卸手搖柄（可選）
塑料齒輪外罩
表面處理：高品質鍍鋅鎳涂層，鹽霧測試約400小時
提供BG檢驗證明
符合CE指令要求
符合EC EN 13157標準
使用方法
升起：順時針轉動手搖柄
停止：任何位置松手（自動負載壓力剎車會起作用）
放下：逆時針轉動手搖柄
自動釋放器操作流程
逆時針轉動手搖柄一圈，自動釋放器會被解除
拉出鎖緊套筒
拆下手搖柄
皮帶或纜繩即可取下
Cable winches PLUS
Strong helper for towing, pulling and lifting
For 35 years, AL-KO cable winches have proven to be effective helpers in the commercial and leisure sectors. Over 1.5 million units sold speaks for itself. The steel console-mounted winches with gear drive and plastic cover are robust and reliable. Smart details such as the load pressure brake, the automatic unwinder or the removable crank facilitate operation and protect the loads to be moved. The unusual design and high-quality corrosion protection guarantee convenient use, even in the long-term.
The selection of AL-KO cable winches for tensile loads between 250 kg and 1150 kg includes models for the widest range of applications, such as for transporting cars, boats and mobile floodlights, for inclined lifts or for agricultural and forestry operations. The manual cable winches can even be used on hand operated forklifts.
To ensure safety when using cable winches, you should familiarise yourself with the product description of your model down to the nearest detail. Please note that AL-KO cable winches must not be used for liftable suspended access equipment – such as passenger baskets and working platforms. When purchasing cable winches, ensure that you choose the right tensile load for your area of application. When using a cable winch with a load pressure brake, it must be ensured that the winch is not operated with less than the minimum load specified in the product overview: Since the brake pressure originates from the load itself, the braking effect only acts from the stated minimum load. In the case of lower loads, the absence of the braking effect poses a safety risk, as the winch may possibly not be able to hold the load.
AL-KO cable winches are subjected to thorough inspections by the test and certification body of German Social Accident Insurance. PLUS cable winches are awarded their DGUV test mark in this process (previously BG inspection). They comply with DIN EN 13157 for manually operated cranes and meet the requirements of the CE Directive and the Machinery Directive.
Cable winches from the PLUS product line "Made in Austria"
For demanding requirements such as in the commercial area, the cable winch braked PLUS "made in Austria" is suitable, with the cable drum being equipped with a plain bearing. This winch also features an automatic load pressure brake, automatic unwinder and a removable crank as well as a plastic cover for the gear. The corrosion protection for the PLUS series model is particularly high: It comprises a zinc-nickel coating , which is subjected to a salt spray test for over around 400 hours for quality reasons. The maximum tensile load is between 350 kg and 1150 kg.
Benefits
High quality corrosion protection
Automatic load pressure brake
Cable drum with plain bearing
Automatic unwinder for rope or band (optional)
Removable crank (optional)
Plastic gear cover
Surface treatment: High-quality zinc-nickel coating, salt spray test approx. 400 hours
BG inspection available
Fulfils the requirements of the CE directive
Meets the EC standard EN 13157
Operation of the cable winch
Lift: Turn the hand crank in a clockwise direction
Stop: Let go of the hand crank in any position (automatic load pressure brake)
Lower: Turn the hand crank in a counter-clockwise direction
Automatic unwinder operation
Turn the hand crank in a counter-clockwise direction for one rotation, this will cause the load pressure brake to be deactivated
Pull up locking sleeve
Remove crank
The band or cable can now be removed
