BUCKEYE螺母HL3L M6規格
Specifications |
| |
A | 13.000 (mm) | |
Tol A | +0.00/-0.27 (mm) | |
B | 5.500 (mm) | |
Tol B | +0.1/-0.4 (mm) | |
C Width Across Ref. Only | 14.300 (mm) | |
D | 0.800 (mm) | |
Tol D | +0.08/-0.08 (mm) | |
E | 1.600 (mm) | |
Tol E | +0.13/-0.13 (mm) | |
F | 9.100 (mm) | |
Tol F | +0.0/-0.3 (mm) | |
Finish | Plain | |
Material | C1010 High-Welding Quality, Low Carbon Steel | |
Pilot Diameter | 9.100 (mm) | |
Pilot Height | 1.600 (mm) | |
Thickness | 5.500 (mm) | |
Thread Size | M6 X 1.0-6H | |
Threads | ASME B 1.13M-2005 | |
Unit System | Metric | |
Width | 13.000 (mm) |

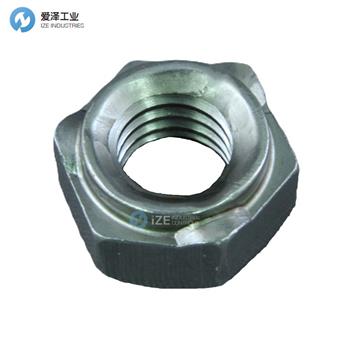

BUCKEYE螺母HL3L M6產品介紹
三個精確的焊接凸點確保即使存在輕微的表面不平整也能與焊接面形成可靠接觸。具有預緊扭矩鎖緊功能，提供抗振動的連接，確保與配合件的穩固結合。提供兩種引導高度，以適應各種金屬壁厚的需求。
Three precise weld projections provide positive contact with the weld surface even when slight surface irregularities are present. The prevailing torque locking feature provides a vibration resistant union with the mating part. Available in two pilot heights to accommodate a variety of metal thicknesses.
BUCKEYE螺母其他常用型號：
BUCKEYE HL3L 1213
BUCKEYE HL3L 1420
BUCKEYE HL3L 3816
BUCKEYE HL3L 3824
BUCKEYE HL3L 51618
BUCKEYE HL3L 5811
BUCKEYE HL3L 71614
BUCKEYE HL3L 71620
BUCKEYE HL3L M10
BUCKEYE HL3L M12
BUCKEYE HL3L M6
BUCKEYE HL3L M8
BUCKEYE Lock nut NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BUCKEYE螺母HL3L M6的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BUCKEYE products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
BUCKEYE螺母HL3L M6介紹
