MCMURDO應答器S5A技術規格
VHF TRANSMITTER | |
Operating Frequency | AIS 1, 161.975MHz |
Data Rate | 9,600bps |
Bandwidth | 25 KHz |
Power Output | 1W EIRP |
AIS Message Type | Message 1, Message 14 |
Modulation | GMSK |
Antenna | Integrated by PCB |
GNSS RECEIVER | |
Receiving Channels | 48 channels |
Acquisition Sensitivity | (-)159 dBm |
Tracking Sensitivity | (-)159 dBm |
Position Accuracy | < 2.5 m Autonomous & SBAS |
BATTERY | |
Type | Primary Lithium (not rechargeable) |
Operating Life | 96 hours minimum |
Storage | 6 years |
Service | Replaceable |
ENVIRONMENT | |
Operating temperature | -20°C to +55°C |
Storage temperature | -30°C to +70°C |
Waterproof | Immersion to 10m |
Buoyancy | Floats |
Exterior Finish | Highly visible Orange |
Compass safe distance | Standard Magnetic — 0.60m |
PHYSICAL | |
Max Diameter (Main Body ) | 70 mm |
Length (Main Body) | 300 mm |
Weight (Main Body) | 283g (Battery included) |
Length (Pole) | 1050mm (Extended) |
Weight (Pole) | 300g |
Total Weight (Storage Package) | 1.08kg |
MCMURDO應答器S5A介紹
McMurdo SmartFind S5A AIS SART
用于救生筏的搜索與救援發射器 (SART)，McMurdo SmartFind S5A AIS SART 進一步提升了Seas of Solutions的搜索與救援信標系列。AIS SART 是傳統雷達 SART 的一種成本效益高的替代方案，并取代了以前的 AIS SART 型號。
特點：
浮力好，防水深度可達10米
緊湊、輕便且堅固
符合IMO和GMDSS標準
可連續操作超過96小時
LED激活指示燈
內置測試功能
內置系繩
無危害電池
電池壽命6年

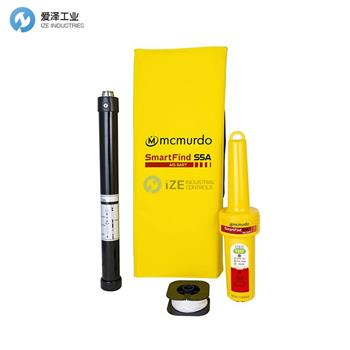

McMurdo SmartFind S5A AIS SART
Search And Rescue Transmitter (SART) For Life rafts, The McMurdo SmartFind S5A AIS SART further enhances the Seas of Solutions search and rescue beacon range. The AIS SART’s are a cost-effective alternative to the traditional radar SART and supersede previous models of AIS SART.
Features
Buoyant and waterproof to 10m
Compact, lightweight and rugged
Meets IMO and GMDSS standards
Over 96hrs continuous operation
LED indication of activation
Inbuilt test facility
Integral lanyard
Non hazardous battery
6 year battery life
MCMURDO應答器其他常用型號：
MCMURDO S5A
MCMURDO M10
MCMURDO M10W
MCMURDO M6
MCMURDO M15
MCMURDO M15S
MCMURDO G8
MCMURDO R5
MCMURDO E8
MCMURDO Transponder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MCMURDO應答器S5A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MCMURDO products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
