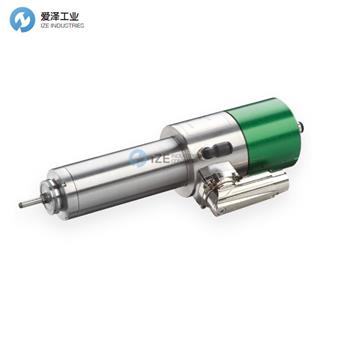

SYCOTEC交流電機主軸4033AC-ESD-CS產品參數
Specification | |
Part No. | 2002 2220 |
Applications | PCB routing |
Clamping diameter | 33 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 6,000 - 100,000 rpm |
Frequency | 100 - 1,666 Hz |
Voltage | 30 V |
Current | max. 8 A |
Torque | max. 8.4 Ncm |
Output power | max. 500 W |
Motor protection | KTY |
Weight | 1.0 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1 μm |
Chuck clamping range | max ? 4.0 mm |
Chuck type | C3 |
Tool change | Pneumatic 5 – 6 bar (hose ? 4 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55/57 (with sealing air + optional accessory: sealing cap 2001 2618) |
Protected against dirt and cooling lubricant | Sealing air 27 l/min@STP (hose outside ? 4 mm) |
Housing material | Stainless steel |
Cable / plug type | 915 |
Inverter recommendation | e@syDrive 4310 (IP 00)* |
Highlights | Electrostatic discharge |

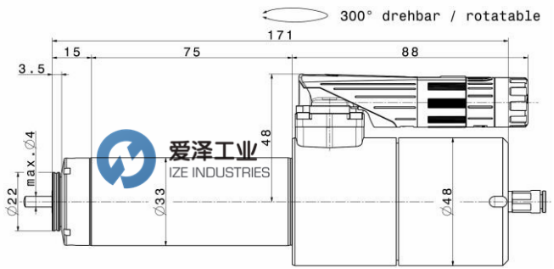

SYCOTEC交流電機主軸4033AC-ESD-CS尺寸圖
SYCOTEC交流電機主軸4033AC-ESD-CS其他常見型號：
SYCOTEC 4025
SYCOTEC 4026
SYCOTEC 4033 AC-ER8
SYCOTEC 4033 AC-LN15-ESD-CS
SYCOTEC 4033 AC-LN15-CS
SYCOTEC 4033 AC-ESD-LS-ST-60-CS
SYCOTEC 4033 AC-ESD-CS
SYCOTEC 4041 HY-ESD
SYCOTEC 4041
SYCOTEC 4040
SYCOTEC AC Motor Spindle NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SYCOTEC交流電機主軸4033AC-ESD-CS的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SYCOTEC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
