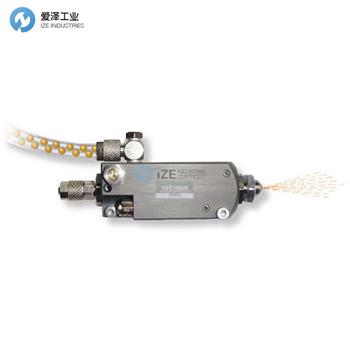

SOMMERTECINIK噴霧器ZMIN規格描述
Technical data | |
Operating pressure | 5 - 8 bar |
Environmental temp. | -25 °C... +80 °C |
Viscosity range | 1 - 150 mm2/sec. at 20 °C |
Max. cycle frequency | 60/min. |
Spray angle | 30° |
Max. air consumpt. | 58 l norm./min. |
SSound level | 75 dB/with metal hose: 76 dB |
Material | Anodized aluminum, nickel-plated brass,seals PTFE + 25 % carbon, NBR |
SOMMERTECINIK噴霧器ZMIN產品簡介
不吸油，而是從頂部注入油。因此，幾乎不需要空氣。霧化器內部安裝了一個油截止閥。霧化器一接收到壓縮空氣，就會打開油閥，并同時涂抹已分配的油。
最小霧化器ZMIN具有內置的流體截止閥。它僅在實際可用壓縮空氣時切換為流動，并在壓縮空氣中斷時立即阻止流體進料。這簡化了控制，因為反應僅根據壓縮空氣發生，例如通過我們的3/2方向閥進行。
可以簡單地從上方（例如，通過與容器的連接）輸入流體。因此ZMIN可以在很少的空氣下運行。
噴霧模式可以在霧化器和流體感應器上調節。
空氣越霧化，液滴越細。
The oil is not suctioned, but fed in from the top. Thus, very little air is needed. An oil shut-off valve is installed inside the atomizer. As soon as the atomizer receives compressed air, the oil valve opens up and the dosed oil is applied simultaneously.
The minimal-atomizer ZMIN has a built-in fluid shut-off valve. It only switches to flow when compressed air is actually available and blocks the fluid infeed immediately when the compressed air is interrupted. This simplifies control, because a reaction only takes place in dependence of the compressed air, e.g. via our 3/2 way valve.
The fluid is simply fed in from above (e.g. through the connection with the container). So the ZMIN can operate with very little air.
The spray pattern can be adjusted on the atomizer and the fluid inductor.
The more atomized air, the finer the droplets.
外觀尺寸
SOMMERTECINIK噴霧器其他常用型號：
SOMMERTECINIK ZMIN
SOMMERTECINIK ZMIN-V60
SOMMERTECINIK ZMIN-MS
SOMMERTECINIK EZMIN-MS
SOMMERTECINIK ATOMIZER NEW + ORIGINAL+ ONE YEAR WARRANTY
