DESTACO氣動夾爪DGC45技術參數
Imperial or Metric Product | Imperial |
Grip Force (lbf) | 108 |
Stroke (in) | 1.81 |
Cylinder Bore (in) | 1.46 |
Pressure Range (psi) | 45-100 psi |
Temp Range Standard | -35° to 80°C (-30° to 180°F) |
Temp Range Viton | -30° to 150°C (-20° to 300°F) |
Actuation (Open/Closed) (Sec) | 0 |
Repeatability (±in) | 0.001 |
Maximum Finger Length (in) | 2.5 |
Product Type | 2 Jaw Parallel |
Direct Connect | Yes |
Special Feature | Precision |
Spring Assist | Yes |
Weight (lb) | 1.32 |
Product Series Description | 2-Jaw Parallel Gripper |
Number of Jaws | 2 |
Product Function | Gripping |
Product Family | Grippers |
Product Group | Parallel Grippers |
Brand | Robohand |
Distributor Group | Robohand Gripping Solutions |

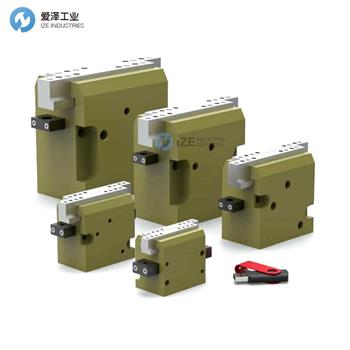

DESTACO氣動夾爪DGC系列產品介紹
Range of two jaws parallel long stroke grippers with spring assist. Five models available. Total stroke varying from 20 to 60mm and force varying from 106Lbs[406N] to 521Lbs[2318N].
This compact gripper is used in confined spaces, combining long stroke with a high grip force
Standard spring allow the gripper to retain component in case of air failure
Inductive sensor holder mounted as standard
帶彈簧輔助的兩爪平行長行程夾具的范圍。五種型號可供選擇?？傂谐虖?0到60mm不等，力從106Lbs[406N]到521Lbs[2318N]不等。
這種緊湊型抓手用于密閉空間，結合了長行程和高抓地力
標準彈簧允許夾具在空氣故障的情況下保持部件
感應式傳感器支架作為標準安裝
DESTACO氣動夾爪其他常用型號：
DESTACO DGC-25
DESTACO DGC-45
DESTACO DGC-65
DESTACO GC-105
DESTACO GC-85
