OLAER充氮工具VG3.25.1.TS2.1技術參數
| Type | VG3 - Control Set |
| Manometer | 25 - 25 bar |
| Adaptor | 1 |
| Charging hose | TS2 |
| Amendment Index (factory specification) | 1 |
OLAER充氮工具VG3系列介紹

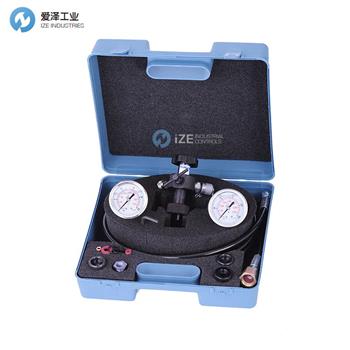

控制裝置 VG 3 用于向氣囊式蓄能器和活塞式蓄能器充氮氣,以及測試或更改現有的預充壓力。 它擰在蓄能器的氣閥上,并用附帶的軟管連接到商用氮氣容器。 如果蓄能器的允許工作壓力上限低于氮氣容器的允許工作壓力上限,則必須插入帶氣體安全閥的減壓閥
The control set VG 3 is used for charging bladder- and piston accumulators with nitrogen and for testing or changing the existing precharge pressure. It is screwed on the gas valve of the accumulator and connected with the attached hose to a commercial nitrogen vessel. If the maximum allowable operating pressure of the accumulator is lower than the maximum allowable operating pressure of the nitrogen vessel, a pressure-reducing valve with gas relief valve must be inserted

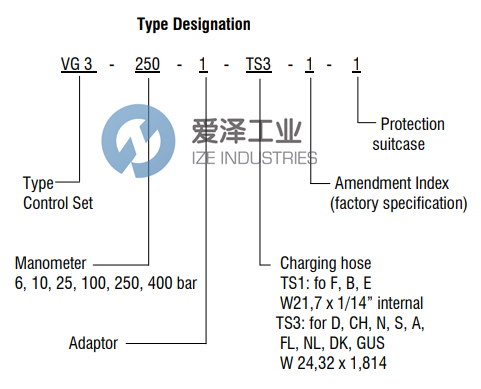

OLAER充氮工具VG3系列選型

OLAER充氮工具VG3系列其他常用型號:
OLAER VG3.25.1.TS2.1
OLAER VG3.250.1.TS2.1
OLAER VG3 6 1 TS2 1
OLAER VG3 10 1 TS2 1
OLAER VG3 25 1 TS2 1
OLAER VG3 100 1 TS2 1
OLAER VG3 250 1 TS2 1
OLAER VG3 400 1 TS2 1
OLAER CHARGING SETS NEW + ORIGINAL+ ONE YEAR WARRANTY
