FREUDENBERG密封圈PU6 190*210*18技術參數
|  | |
| Overview | |
| MATERIAL | 95 AU V149 |
| NET WEIGHT | 90 GRM |

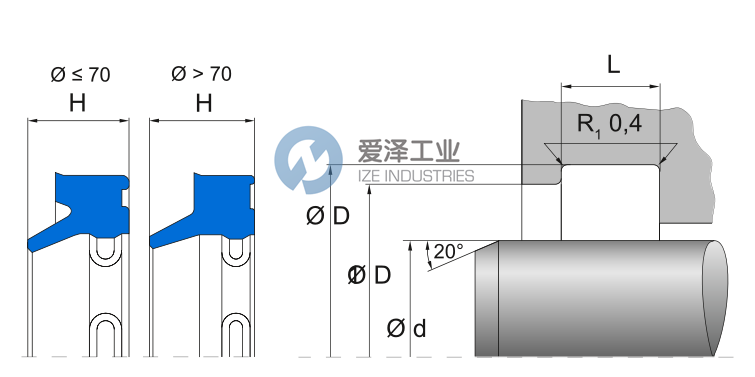

| Dimensions | |
| Inner diameter (d) | 190 mm |
| Outer diameter (D) | 210 mm |
| Diameter (D1) | 200 mm |
| Seal width (H) | 18 mm |
| Installation space width (L) | 10.2 mm |
FREUDENBERG密封圈PU6系列介紹
Merkel 擦拭器 PU6是一款由聚氨酯或 Hytrel 制成的單作用擦拭器,具有避免扭曲的支撐段、略微圓形的擦拭器唇緣和外徑處的靜態密封邊緣。
污垢和水霧不會通過外徑進入
可靠地清除污垢
在縮回桿上留下殘留的油膜
密封件和防塵圈之間不會產生扭曲和壓力
高耐磨

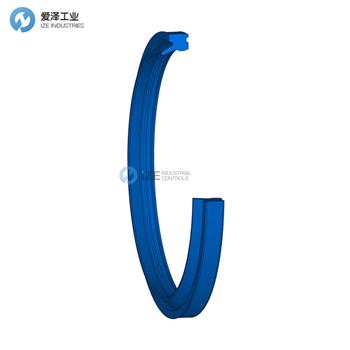

Merkel Wiper PU6 / PH6 is a single-acting wiper made of polyurethane or Hytrel with supportive segments to avoid twisting, a slightly rounded wiper lip and a static sealing edge at the outside diameter.
No ingress of dirt and water spray via outside diameter
Reliably wipes away dirt
Leaves a residual film of oil on retracting rod
No twisting and pressure build-up between seal and wiper
Highly wear-resistant
FREUDENBERG密封圈PU6系列其他常用型號:
FREUDENBERG PU6 190*210*18
FREUDENBERG PU6 60*70.6*7
FREUDENBERG PU6 140*155*16
FREUDENBERG PU6 320*345*20
FREUDENBERG PU6 450*470*18
FREUDENBERG PU6 143*151.6*6.3
FREUDENBERG PU6 155*175*18
FREUDENBERG PU6 115*127.2*12
FREUDENBERG PU6 190*198.6*7
FREUDENBERG PU6 350*375*20
FREUDENBERG PU6 95*107.2*12
FREUDENBERG PU6 32*40.6*6.5
FREUDENBERG WIPER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FREUDENBERG密封圈PU6 190*210*18的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for FREUDENBERG products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
FREUDENBERG密封圈PU6 190*210*18技術參數及介紹
