Feature

Code

Description

PRODUCT IDENTIFICATION

HHD

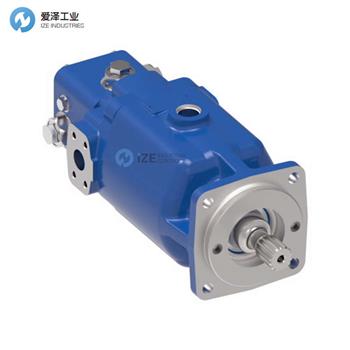

HEAVY DUTY HYDROSTATIC FIXED DISPLACEMENT MOTOR

DISPLACEMENT

46

75,33 CM3/R [4.594 IN3/R] AT 18 DEG. SWASHPLATE ANGLE

TYPE

3

FIXED DISPLACEMENT MOTOR

DESIGN TYPE

3

FIXED CLEARANCE - (MODELS 33-64)

OUTPUT SHAFT

14

14 TOOTH 12/24 PITCH SPLINE (MODELS 33-64)

MAIN PORTS

A

[1.00] SAE 4-BOLT SPLIT FLANGE PORT, STANDARD PRESSURE SERIES (CODE 61)

END COVER AND COMPOSITE VALVE BLOCK ASSY

B

STANDARD END COVER, COMPOSITE VALVE BLOCK WITH LOW-RATE SHUTTLE VALVE SPRINGS

CHARGE PRESSURE RELIEF VALVE

1

STANDARD

CHARGE PRESSURE RELIEF VALVE SETTING

B

11 BAR [160 LBF/IN2]

HIGH PRESSURE RELIEF VALVE - PORT A

3

STANDARD WITH THREADED RETAINER

HIGH PRESSURE REL VALVE SETTING - PORT A

K

345 BAR [5000 LBF/IN2]

HIGH PRESSURE RELIEF VALVE - PORT B

3

STANDARD WITH THREADED RETAINER

HIGH PRESSURE REL VALVE SETTING - PORT B

K

345 BAR [5000 LBF/IN2]

SPEED SENSOR

C

SPEED SENSOR HOLE (5/8-18 UNF THREAD) PLUGGED (FOR DIGITAL OR MAGNETIC SENSOR)

SPECIAL FEATURES

0

NO SPECIAL FEATURES

PAINT AND PACKAGING

0

PAINTED PRIMER BLUE

IDENTIFICATION ON UNIT

0

STANDARD

DESIGN CODE

B

B
